Three-row Roller Slewing Bearings
The three-row roller slewing ring reduces the bearing diameter by distributing loads in different directions to different rows of raceways and rollers, making the slewing ring more compact and improving the load-bearing capacity. Three-row roller slewing bearings are suitable for construction machinery such as lifting, mining, material transportation, and ships.

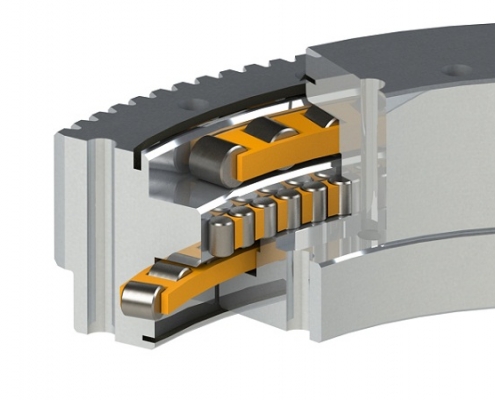

The slewing ring of the three-row cylindrical roller slewing bearing has three races. The upper, lower, and radial raceways are separated. Therefore, each row of rollers can bear axial and radial loads respectively. It is one of the four products with the larger carrying capacity and is suitable for heavy machinery that requires a larger load.
Range of external diameter: 300 mm to 10000 mm
Ring material: 42CrMo / 50Mn/ C45
Ball/roller material: GCr15
Outer diameter: 634mm~5282mm
Roller diameter: 25m~50mm
Rated load: 275kN~6050kN
Cage material: steel 20 or ZL102 cast aluminum alloy
Spacer material: nylon 6 / nylon 66
Quenching hardness of raceway: HRC55-62
Tooth type: no gear, internal gear, external gear
Lead Time: 30 days

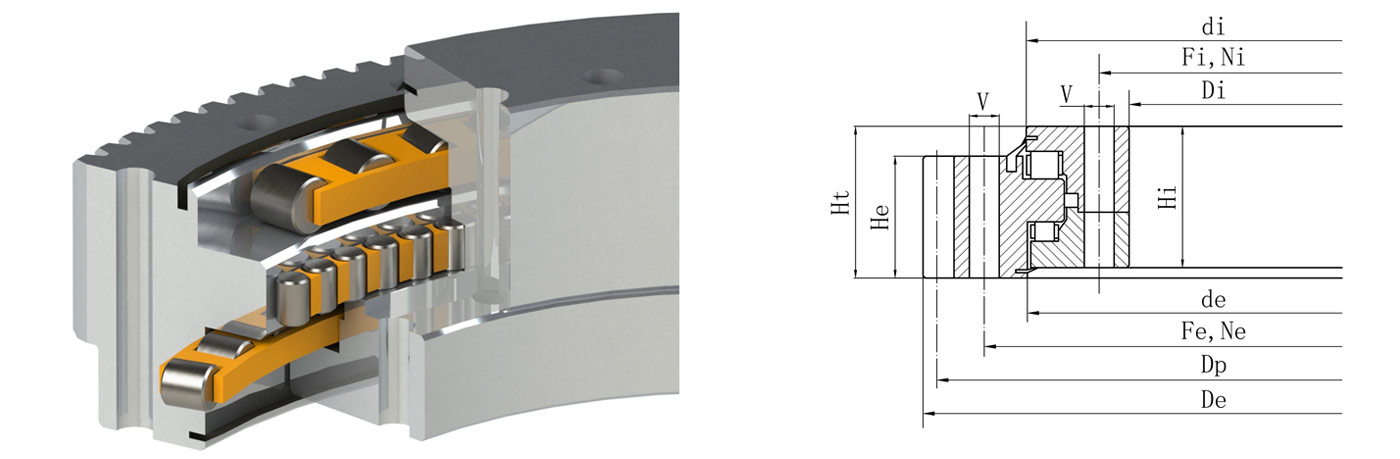

Model parameters of externally toothed three-row cylindrical roller slewing bearings
TYPE | Dimensions | Installation size | Tooth parameters | Load | Weight | ||||||||||||||
De | de | di | Di | He | Hi | Ht | Fe | Ne | V | Fi | Ni | V | m | z | Dp | x·m | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||

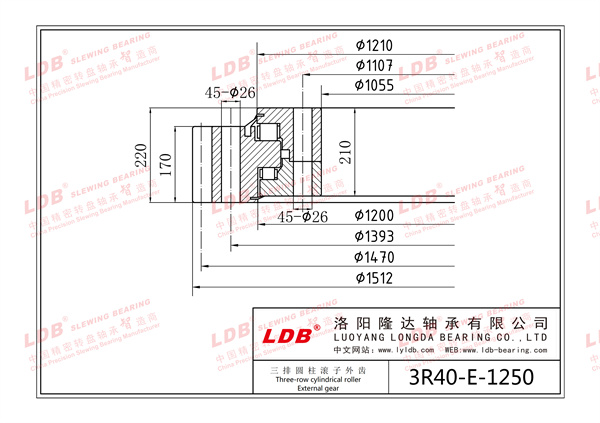

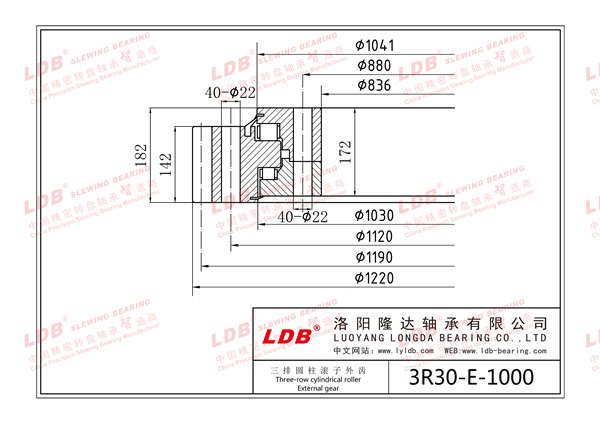

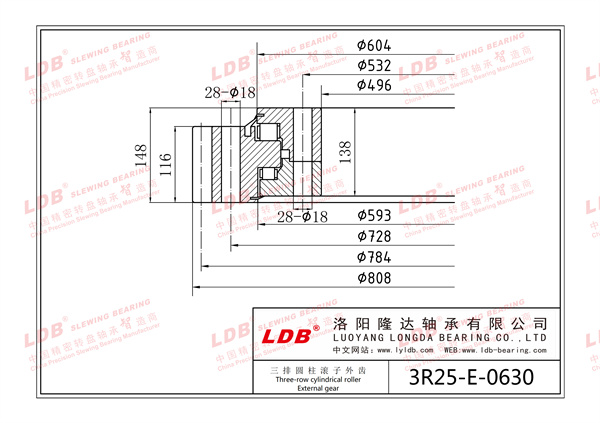

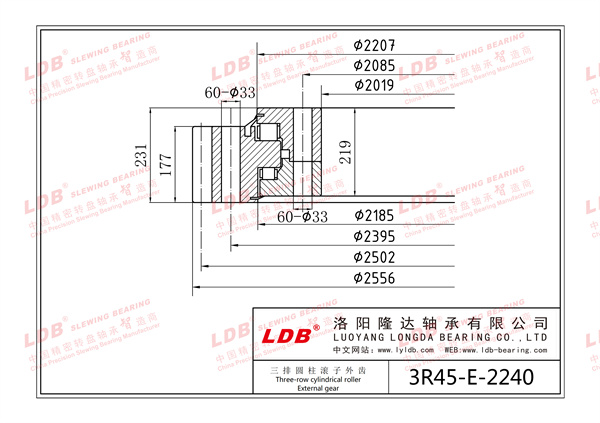

3R25-E-0500 | 665 | 526 | 537 | 366 | 116 | 138 | 148 | 598 | 24 | 18 | 402 | 24 | 18 | 5 | 130 | 650 | 5 | 2750 | 224 |
3R25-E-0560 | 725 | 586 | 597 | 426 | 116 | 138 | 148 | 658 | 24 | 18 | 462 | 24 | 18 | 5 | 142 | 710 | 5 | 3080 | 240 |
3R25-E-0630 | 808 | 593 | 604 | 496 | 116 | 138 | 148 | 728 | 28 | 18 | 532 | 28 | 18 | 8 | 98 | 784 | 8 | 3450 | 270 |
3R25-E-0710 | 888 | 673 | 684 | 576 | 116 | 138 | 148 | 808 | 28 | 18 | 612 | 28 | 18 | 8 | 108 | 864 | 8 | 3880 | 300 |

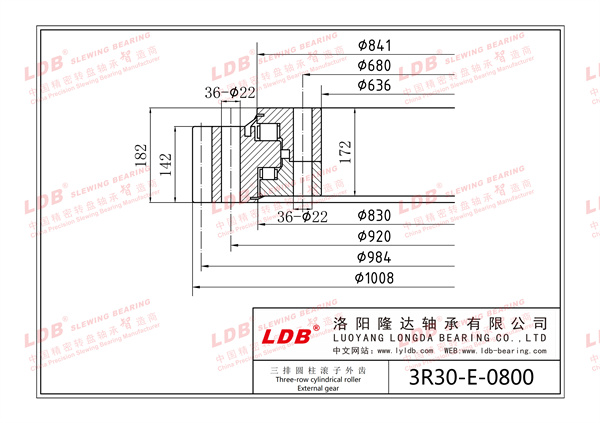

3R30-E-0800 | 1008 | 830 | 841 | 636 | 142 | 172 | 182 | 920 | 36 | 22 | 680 | 36 | 22 | 8 | 123 | 984 | 8 | 5490 | 500 |
3R30-E-0900 | 1104 | 930 | 941 | 736 | 142 | 172 | 182 | 1020 | 36 | 22 | 780 | 36 | 22 | 8 | 135 | 1080 | 8 | 6190 | 600 |
3R30-E-1000 | 1220 | 1030 | 1041 | 836 | 142 | 172 | 182 | 1120 | 40 | 22 | 880 | 40 | 22 | 10 | 119 | 1190 | 10 | 6890 | 680 |

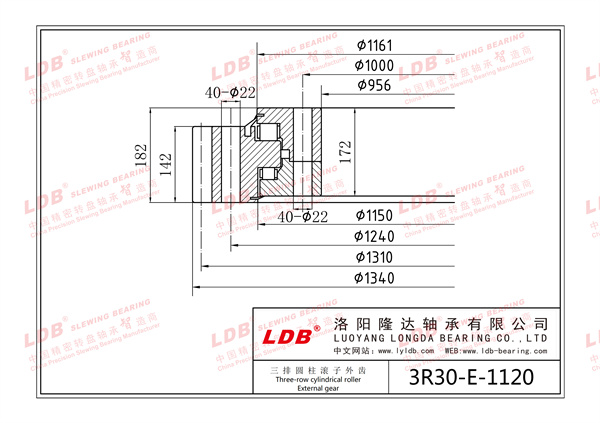

3R30-E-1120 | 1340 | 1150 | 1161 | 956 | 142 | 172 | 182 | 1240 | 40 | 22 | 1000 | 40 | 22 | 10 | 131 | 1310 | 10 | 7680 | 820 |
3R40-E-1250 | 1512 | 1200 | 1210 | 1055 | 170 | 210 | 220 | 1393 | 45 | 26 | 1107 | 45 | 26 | 14 | 105 | 1470 | 14 | 11100 | 1200 |
3R40-E-1400 | 1666 | 1350 | 1360 | 1205 | 170 | 210 | 220 | 1543 | 45 | 26 | 1257 | 45 | 26 | 14 | 116 | 1624 | 14 | 12400 | 1300 |
3R40-E-1600 | 1872 | 1550 | 1560 | 1405 | 170 | 210 | 220 | 1743 | 48 | 26 | 1457 | 48 | 26 | 16 | 114 | 1824 | 16 | 14200 | 1520 |
3R40-E-1800 | 2072 | 1840 | 1850 | 1605 | 170 | 210 | 220 | 1943 | 48 | 26 | 1657 | 48 | 26 | 14 | 145 | 2030 | 14 | 15900 | 1750 |
3R45-E-2000 | 2304 | 1945 | 1967 | 1779 | 177 | 219 | 231 | 2155 | 60 | 33 | 1845 | 60 | 33 | 18 | 125 | 2250 | 18 | 20500 | 2400 |
3R45-E-2240 | 2556 | 2185 | 2207 | 2019 | 177 | 219 | 231 | 2395 | 60 | 33 | 2085 | 60 | 33 | 18 | 139 | 2502 | 18 | 23100 | 2700 |
3R45-E-2500 | 2820 | 2445 | 2467 | 2279 | 177 | 219 | 231 | 2655 | 72 | 33 | 2345 | 72 | 33 | 20 | 138 | 2760 | 20 | 25800 | 3000 |

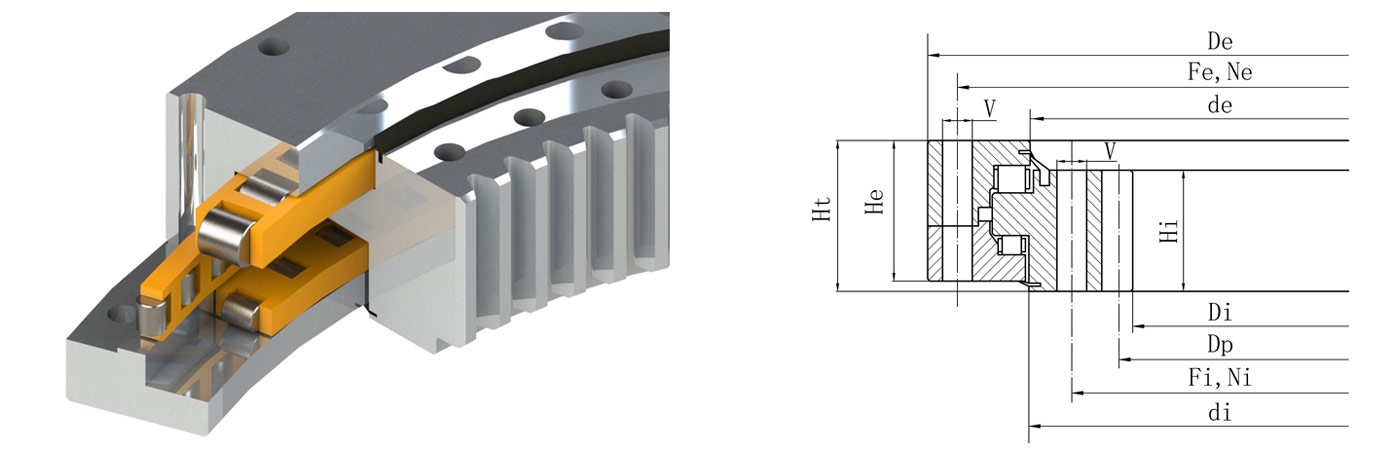

Internal gear type three-row cylindrical roller slewing bearing

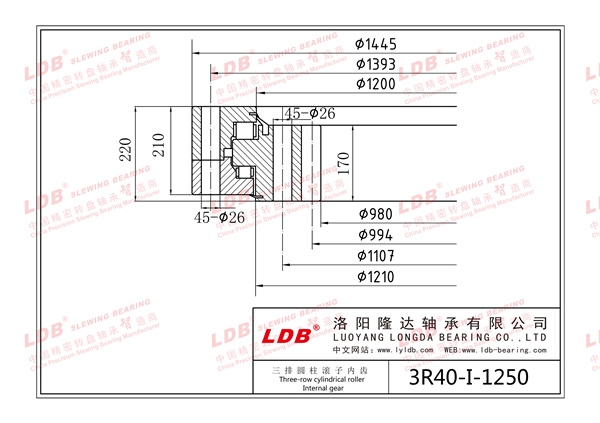

TYPE | Dimensions | Installation size | Tooth parameters | Load | Weight | ||||||||||||||
De | de | di | Di | He | Hi | Ht | Fe | Ne | V | Fi | Ni | V | m | z | Dp | x·m | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||
3R25-I-0500 | 634 | 526 | 537 | 335 | 138 | 116 | 148 | 598 | 24 | 18 | 402 | 24 | 18 | 5 | 68 | 340 | 5 | 2750 | 224 |
3R25-I-0560 | 694 | 586 | 597 | 395 | 138 | 116 | 148 | 658 | 24 | 18 | 462 | 24 | 18 | 5 | 80 | 400 | 5 | 3080 | 240 |
3R25-I-0630 | 764 | 656 | 667 | 456 | 138 | 116 | 148 | 728 | 28 | 18 | 532 | 28 | 18 | 6 | 77 | 462 | 6 | 3450 | 270 |
3R25-I-0710 | 844 | 736 | 747 | 534 | 138 | 116 | 148 | 808 | 28 | 18 | 612 | 28 | 18 | 6 | 90 | 540 | 6 | 3880 | 300 |
3R30-I-0800 | 964 | 759 | 770 | 590 | 172 | 142 | 182 | 920 | 36 | 22 | 680 | 36 | 22 | 10 | 60 | 600 | 10 | 5490 | 500 |
3R30-I-0900 | 1064 | 930 | 941 | 688 | 172 | 142 | 182 | 1020 | 36 | 22 | 780 | 36 | 22 | 8 | 87 | 696 | 8 | 6190 | 600 |
3R30-I-1000 | 1164 | 1030 | 1041 | 780 | 172 | 142 | 182 | 1120 | 40 | 22 | 880 | 40 | 22 | 10 | 79 | 790 | 10 | 6890 | 680 |
3R30-I-1120 | 1284 | 1150 | 1161 | 900 | 172 | 142 | 182 | 1240 | 40 | 22 | 1000 | 40 | 22 | 10 | 91 | 910 | 10 | 7680 | 820 |
3R40-I-1250 | 1445 | 1200 | 1210 | 980 | 210 | 170 | 220 | 1393 | 45 | 26 | 1107 | 45 | 26 | 14 | 71 | 994 | 14 | 11100 | 1200 |
3R40-I-1400 | 1595 | 1350 | 1360 | 1134 | 210 | 170 | 220 | 1543 | 45 | 26 | 1257 | 45 | 26 | 14 | 80 | 1150 | 14 | 12400 | 1300 |
3R40-I-1600 | 1795 | 1550 | 1560 | 1328 | 210 | 170 | 220 | 1743 | 48 | 26 | 1457 | 48 | 26 | 16 | 84 | 1344 | 16 | 14200 | 1520 |
3R40-I-1800 | 1995 | 1750 | 1760 | 1520 | 210 | 170 | 220 | 1943 | 48 | 26 | 1657 | 48 | 26 | 16 | 96 | 1536 | 16 | 15900 | 1750 |
3R45-I-2000 | 2221 | 1945 | 1967 | 1692 | 219 | 177 | 231 | 2155 | 60 | 33 | 1845 | 60 | 33 | 18 | 95 | 1710 | 18 | 20500 | 2400 |
3R45-I-2240 | 2461 | 2273 | 2295 | 1920 | 219 | 177 | 231 | 2395 | 60 | 33 | 2085 | 60 | 33 | 16 | 121 | 1936 | 16 | 23100 | 2700 |
3R45-I-2500 | 2721 | 2533 | 2555 | 2178 | 219 | 177 | 231 | 2655 | 72 | 33 | 2345 | 72 | 33 | 18 | 122 | 2196 | 18 | 25800 | 3000 |

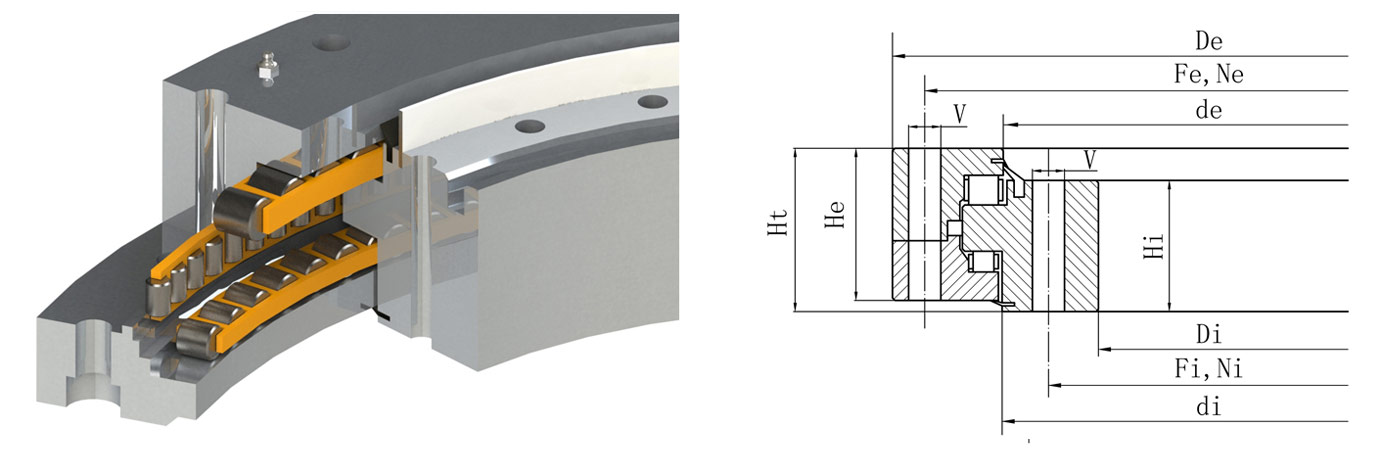

Gearless three-row cylindrical roller slewing bearing model parameters
TYPE | Dimensions | Installation size | Load | Weight | |||||||||||
De | de | di | Di | He | Hi | Ht | Fe | Ne | V | Fi | Ni | V | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [kN] | [kg] | |||

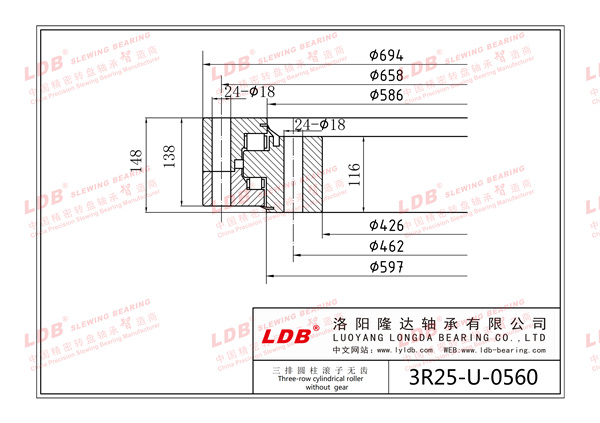

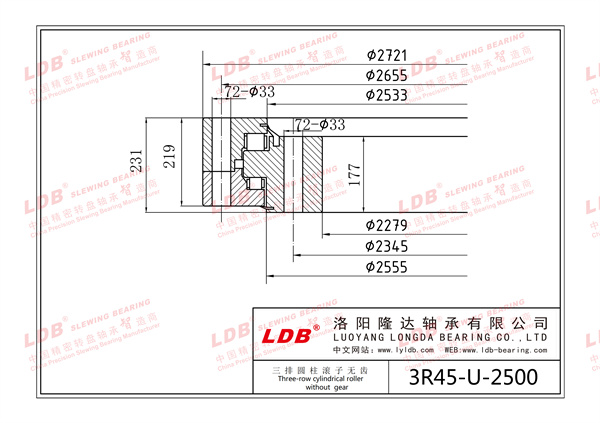

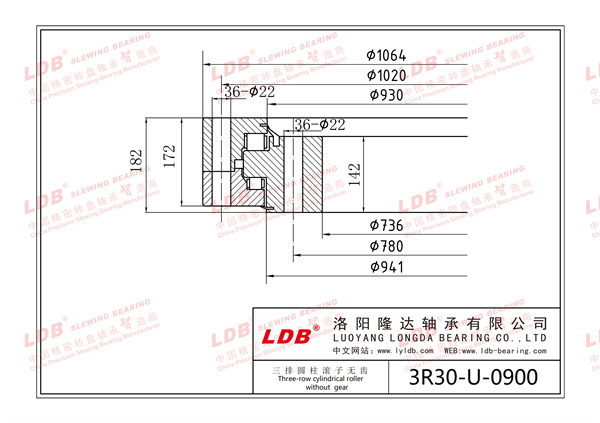

3R25-U-0500 | 634 | 526 | 537 | 366 | 138 | 116 | 148 | 598 | 24 | 18 | 402 | 24 | 18 | 2750 | 224 |
3R25-U-0560 | 694 | 586 | 597 | 426 | 138 | 116 | 148 | 658 | 24 | 18 | 462 | 24 | 18 | 3080 | 240 |
3R25-U-0630 | 764 | 656 | 667 | 496 | 138 | 116 | 148 | 728 | 28 | 18 | 532 | 28 | 18 | 3450 | 270 |
3R25-U-0710 | 844 | 736 | 747 | 576 | 138 | 116 | 148 | 808 | 28 | 18 | 612 | 28 | 18 | 3880 | 300 |
3R30-U-0800 | 964 | 830 | 841 | 636 | 172 | 142 | 182 | 920 | 36 | 22 | 680 | 36 | 22 | 5490 | 500 |
3R30-U-0900 | 1064 | 930 | 941 | 736 | 172 | 142 | 182 | 1020 | 36 | 22 | 780 | 36 | 22 | 6190 | 600 |
3R30-U-1000 | 1164 | 1030 | 1041 | 836 | 172 | 142 | 182 | 1120 | 40 | 22 | 880 | 40 | 22 | 6890 | 680 |
3R30-U-1120 | 1284 | 1150 | 1161 | 956 | 172 | 142 | 182 | 1240 | 40 | 22 | 1000 | 40 | 22 | 7680 | 820 |
3R30-U-1250 | 1445 | 1290 | 1300 | 1055 | 210 | 170 | 220 | 1393 | 45 | 26 | 1107 | 45 | 26 | 11100 | 1200 |
3R40-U-1400 | 1595 | 1440 | 1450 | 1205 | 210 | 170 | 220 | 1543 | 45 | 26 | 1257 | 45 | 26 | 12400 | 1300 |
3R40-U-1600 | 1795 | 1640 | 1650 | 1405 | 210 | 170 | 220 | 1743 | 48 | 26 | 1457 | 48 | 26 | 14200 | 1520 |
3R40-U-1800 | 1995 | 1840 | 1850 | 1605 | 210 | 170 | 220 | 1943 | 48 | 26 | 1657 | 48 | 26 | 15900 | 1750 |
3R45-U-2000 | 2195 | 2041 | 2055 | 1816 | 137 | 117 | 150 | 2127 | 60 | 33 | 1885 | 60 | 33 | 16900 | 1120 |
3R45-U-2240 | 2461 | 2273 | 2295 | 2019 | 219 | 177 | 231 | 2395 | 60 | 33 | 2085 | 60 | 33 | 23100 | 2700 |
3R45-U-2500 | 2721 | 2533 | 2555 | 2279 | 219 | 177 | 231 | 2655 | 72 | 33 | 2345 | 72 | 33 | 25800 | 3000 |
