Cross Roller Slewing Bearing

Cross cylindrical roller slewing bearings are a type of crossed roller bearing that is made up of two races and a single row of crossed cylindrical rollers. They are made up of an inner ring, outer ring, single row of cross-placed rollers, cage or isolation block, and sealings. Cross cylindrical roller slewing bearing is composed of an inner ring, outer ring, single row of cross-placed rollers, cage or isolation block, sealings, and other parts.

Advantages: High precision, small assembly gap, high rigidity, high stable rotating torque, long service life, and others.

Application: CNC rotary table, large radar antenna, industrial robot, precision medical equipment and other fields,

Range of external diameter: 300 mm to 10000 mm

Ring material: 42CrMo / 50Mn/ C45

Ball/roller material: GCr15

Cage material: steel 20 or ZL102 cast aluminum alloy

Spacer material: nylon 6 / nylon 66

Quenching hardness of raceway: HRC55-62

Tooth type: no gear, internal gear, external gear

Lead Time: 30 days

Catalogue Download Request Quote

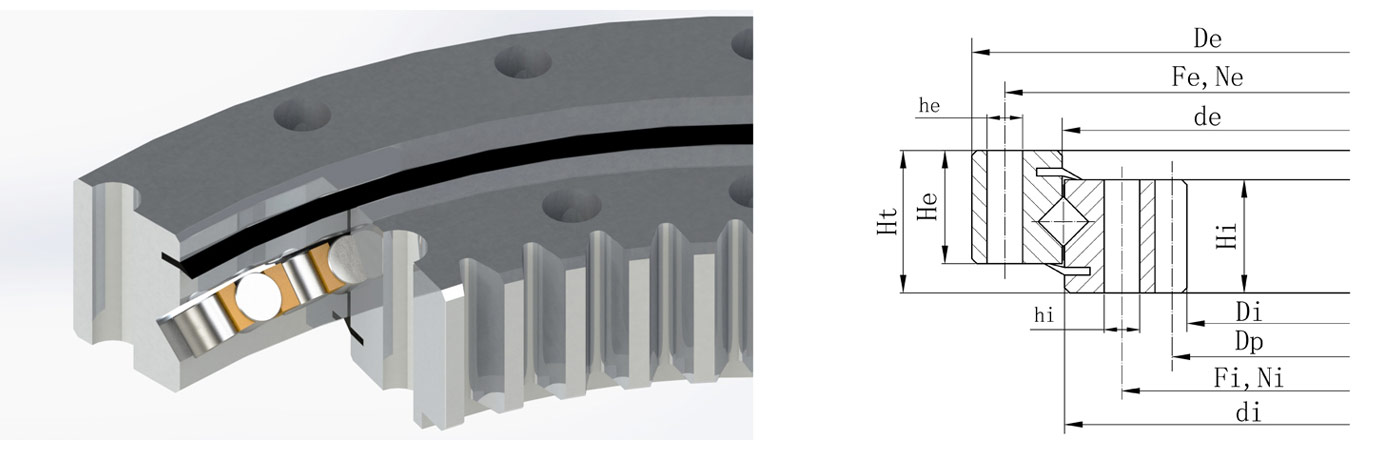

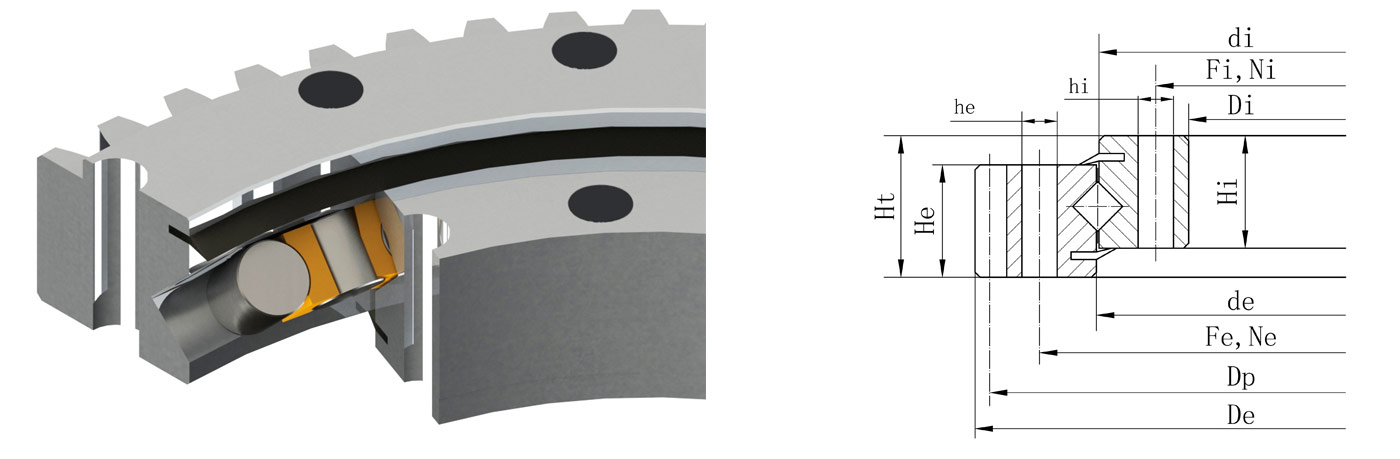

Model parameters of external gear crossed roller slewing bearings

Model parameters of external gear crossed roller slewing bearings

TYPE Dimensions Installation size Tooth parameters Load Weight
De de di Di He Hi Ht Fe Ne he Fi Ni hi m Z x·m Dp
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [mm] [-] [mm] [-] [mm] [mm] [kN] [kg]

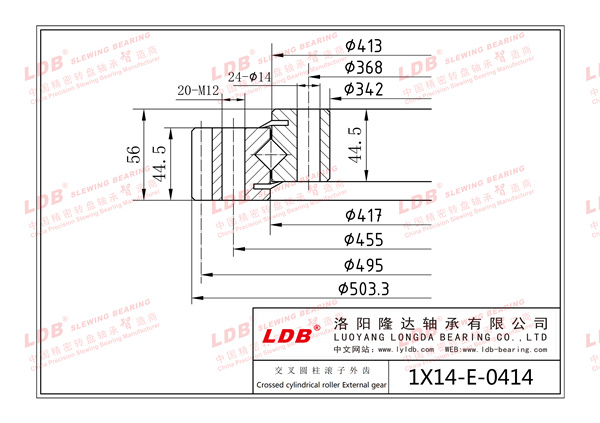

1X14-E-0414 503.3 417 413 342 44.5 44.5 56 455 20 M12 368 24 14 5 99 – 495 30.26 32

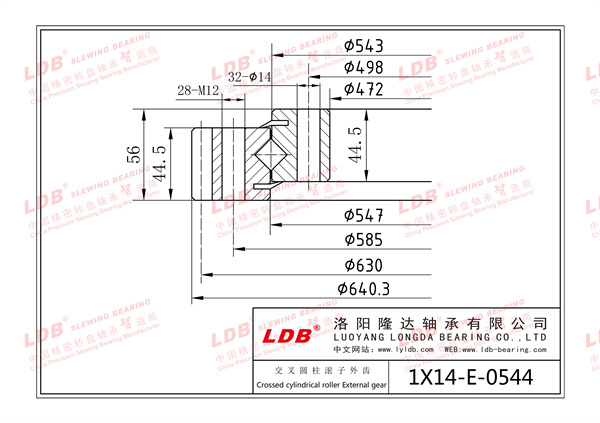

1X14-E-0544 640.3 547 543 472 44.5 44.5 56 585 28 M12 498 32 14 6 105 – 630 36.31 43
1X14-E-0644 742.3 647 643 572 44.5 44.5 56 685 32 M12 598 36 14 6 122 – 732 36.31 52
1X14-E-0744 838.1 747 743 672 44.5 44.5 56 785 36 M12 698 40 14 6 138 – 828 36.31 58

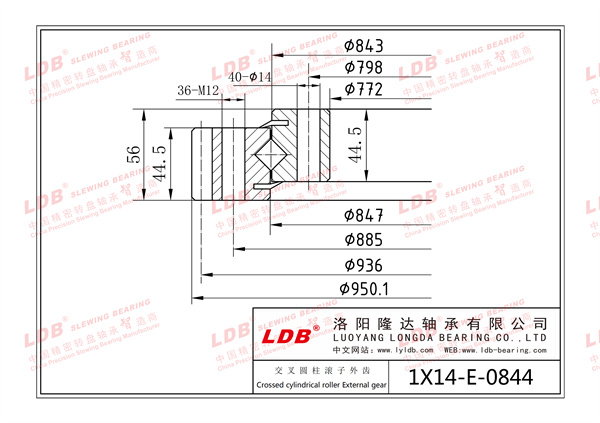

1X14-E-0844 950.1 847 843 772 44.5 44.5 56 885 36 M12 798 40 14 8 117 – 936 48.42 71
1X14-E-0944 1046.1 947 943 872 44.5 44.5 56 985 40 M12 898 44 14 8 129 – 1032 48.42 77
1X14-E-1044 1198.1 1097 1093 1022 44.5 44.5 56 1135 44 M12 1048 48 14 8 148 – 1184 48.42 90
1X16-E-1204 1338 1206 1202 1119 58 58 68 1257 45 16 1151 45 16 10 131 – 1310 92.8 154
1X16-E-1314 1448 1316 1312 1229 58 58 68 1367 50 16 1261 50 16 10 142 – 1420 92.8 168
1X16-E-1424 1558 1426 1422 1339 58 58 68 1477 54 16 1371 54 16 10 153 – 1530 92.8 182
1X16-E-1534 1668 1536 1532 1449 58 58 68 1587 60 16 1481 60 16 10 164 – 1640 92.8 195
1X16-E-1644 1791 1646 1642 1536 58 58 68 1708 54 22 1580 54 22 10 176 – 1760 92.8 242
1X16-E-1754 1901 1756 1752 1646 58 58 68 1818 60 22 1690 60 22 10 187 – 1870 92.8 258

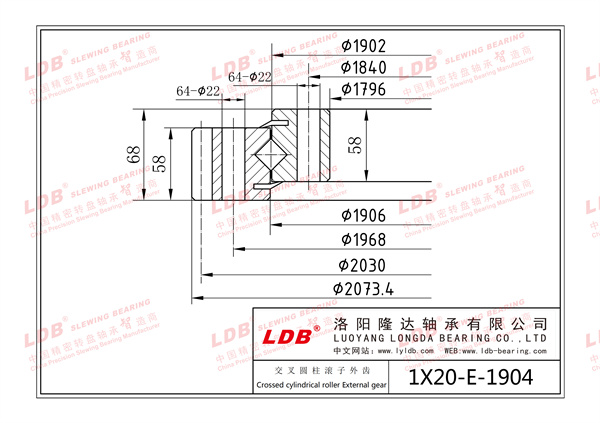

1X20-E-1904 2073.4 1906 1902 1796 58 58 68 1968 64 22 1840 64 22 14 145 – 2030 129.92 306
1X20-E-0307 403.5 308 306 234 47 45 55 358 24 13 259 28-1 13 4.5 88 – 396 15.12 24

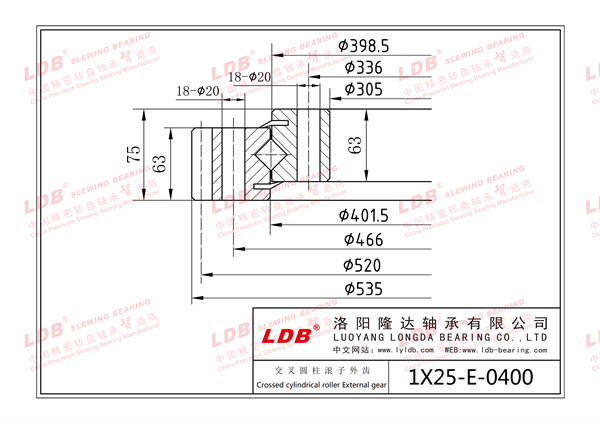

1X25-E-0400 535 401.5 398.5 305 63 63 75 466 18 20 336 18 20 8 65 – 520 35.2 61
1X25-E-0475 589 476.5 473.5 383 63 63 75 540 18 20 410 18 20 5 116 – 580 22 63
1X30-E-0508 654 509.5 506.5 391 73 73 85 582 30 22 432 30-1 22 8 80 – 640 38.44 97
1X25-E-0574 700 575.5 572.5 479 64 64 77 640 36 18 508 36-1 18 6 114 3 690 34.78 82

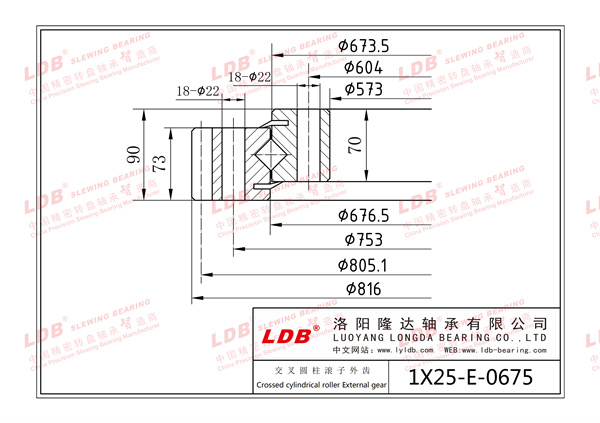

1X25-E-0675 816 676.5 673.5 573 73 70 90 753 18 22 604 18 22 6 132 6.552 805.1 37.68 124
1X25-E-0734 886 735.5 732.5 614 75 70 85 810 30 22 658 30 22 8 108 4 872 57.97 155
1X30-E-0823 979 824.5 821.5 717 79 82 100 893 36 22 753 36-1 22 10 94 11 962 62.8 178

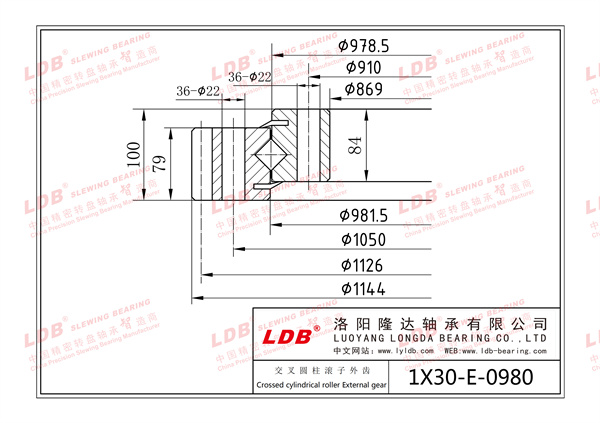

1X30-E-0980 1144 981.5 978.5 869 79 84 100 1050 36 22 910 36 22 10 111 8 1126 64.73 228
1X36-E-1116 1289.5 1118 1114 984 90 94 114 1198 40 22 1035 40 22 10 125 10.5 1271 75.4 335
1X36-E-1250 1476 1252 1248 1079 91 100 110 1350 40 26 1150 40 26 10 144 8.6 1457.2 75.4 505

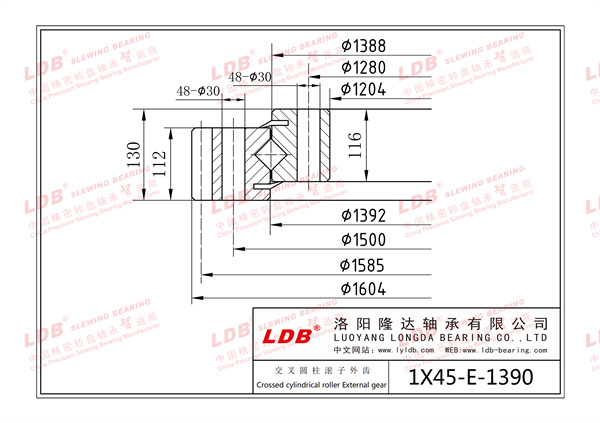

1X45-E-1390 1604 1392 1388 1204 112 116 130 1500 48 30 1280 48 30 10 157 7.5 1585 87 620
1X45-E-1595 1836 1597 1593 1436 120 115 135 1700 45 30 1485 45 30 16 112 8 1808 185.5 791
1X45-E-1790 2027 1792 1788 1616 130 128 150 1905 48 30 1675 48 30 14 142 7 2002 175.8 1004
1X50-E-2002 2267 2004 2000 1821 129 119 140 2124 72 30 1880 72 30 16 139 8 2240 199.4 1174
1X50-E-2242 2534 2244 2240 2048 132 122 144 2373 60 33 2112 60 33 18 138 9 2502 229.6 1482
1X50-E-2500 2790 2502 2498 2296 148 142 164 2640 72 33 2360 72 33 18 151 19.8 2757.6 257.4 1895
1X50-E-2810 3116 2812 2808 2606 148 142 164 2950 80 33 2670 80 33 20 152 20 3080 286 2200


Internal gear type cross roller slewing bearing model parameters

Internal gear type cross roller slewing bearing model parameters

TYPE Dimensions Installation size Tooth parameters Load Weight
De de di Di He Hi Ht Fe Ne he Fi Ni hi m Z x·m Dp
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [mm] [-] [mm] [-] – [mm] [kN] [kg]

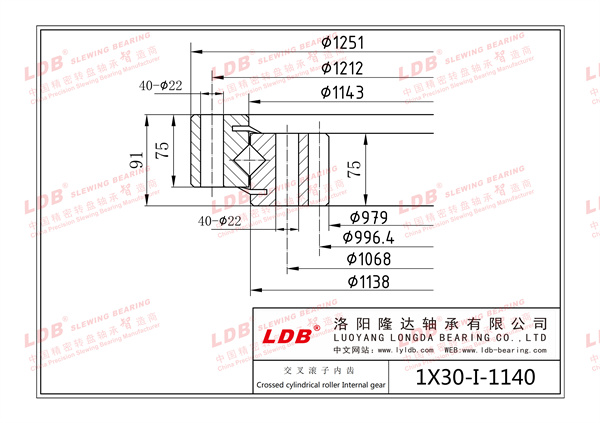

1X14-I-0414 484 415 411 325 44.5 44.5 56 460 24 14 375 24 M12 5 67 – 335 26.2 31
1X14-I-0544 614 545 541 444 44.5 44.5 56 590 32 14 505 32 M12 6 76 – 456 35 43
1X14-I-0644 714 645 641 546 44.5 44.5 56 690 36 14 605 36 M12 6 93 – 558 35 50
1X14-I-0744 814 745 741 648 44.5 44.5 56 790 40 14 705 40 M12 6 110 – 660 35 58
1X14-I-0844 914 845 841 736 44.5 44.5 56 890 40 14 805 40 M12 8 94 – 752 46.7 69
1X14-I-0944 1014 945 941 840 44.5 44.5 56 990 44 14 905 44 M12 8 107 – 856 46.7 76
1X14-I-1094 1164 1095 1091 984 44.5 44.5 56 1140 48 14 1055 48 M12 8 125 – 1000 46.7 91
1X16-I-1204 1289 1206 1202 1072 58 58 68 1257 45 16 1151 45 16 10 108 – 1080 96.67 148
1X16-I-1314 1399 1316 1312 1182 58 58 68 1367 50 16 1261 50 16 10 119 – 1190 96.67 161
1X16-I-1424 1509 1426 1422 1292 58 58 68 1477 54 16 1371 54 16 10 130 – 1300 96.67 175
1X16-I-1534 1619 1536 1532 1402 58 58 68 1587 60 16 1481 60 16 10 141 – 1410 96.67 189
1X16-I-1644 1752 1646 1642 1495 58 58 68 1708 54 22 1580 54 22 10 150 – 1500 96.67 239
1X16-I-1754 1862 1756 1752 1605 58 58 68 1818 60 22 1690 60 22 10 161 – 1610 96.67 256
1X20-I-1904 2012 1906 1902 1729 58 58 68 1968 64 22 1840 64 22 14 124 – 1736 135.33 304

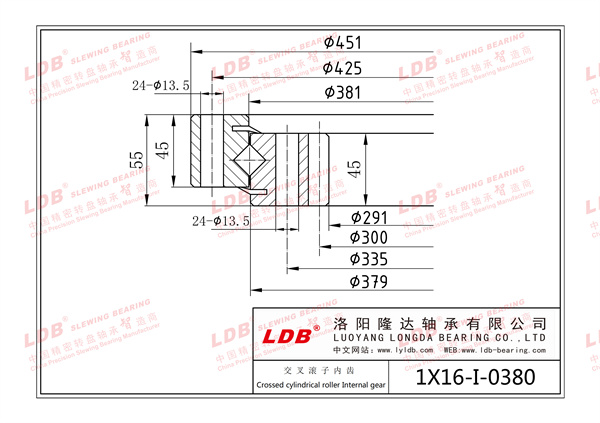

1X16-I-0380 451 381 379 291 45 45 55 425 24 13.5 335 24 13.5 5 60 – 300 – 28
1X20-I-0489 562 490.5 487.5 385 50 50 60 538 30 14 440 30 14 6 66 – 396 – 44
1X20-I-0573 665 574.5 571.5 457 50 50 60 630 28 17.5 518 28 17.5 6 77 -3 468 – 62
1X25-I-0673 771 674.5 671.5 541 60 60 70 736 32 17.5 610 32 17.5 6 91 -3 552 – 96

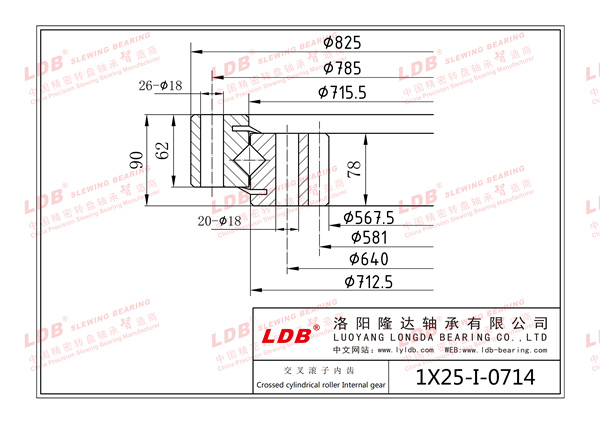

1X25-I-0714 825 715.5 712.5 567.5 62 78 90 785 26 18 640 20 18 7 82 – 581 – 135
1X25-I-0770 871 771.5 768.5 634 60 60 70 833 36 17.5 707 36 17.5 8 80 -4 648 – 112

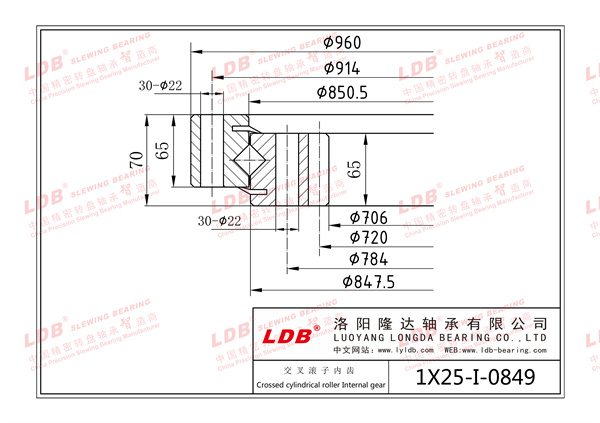

1X25-I-0849 960 850.5 847.5 706 65 65 70 914 30 22 784 30 22 8 89 -4 720 – 14.4

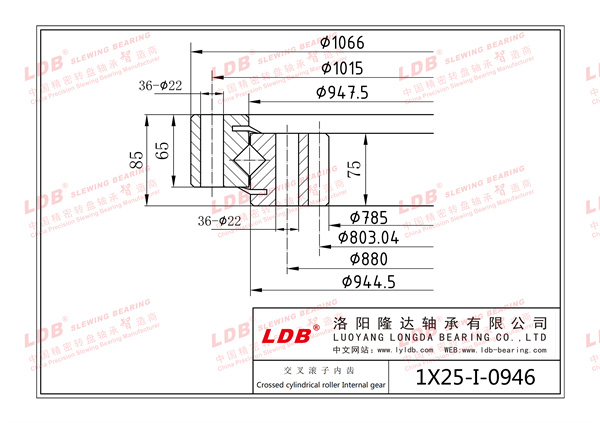

1X25-I-0946 1066 947.5 944.5 785 65 75 85 1015 36 22 880 36 22 10 79 -6.52 803.04 – 190
1X25-I-1050 1170 1052 1048 882 80 88 98 1125 40 22 975 40 22 10 89 – 900 – 258
1X30-I-1140 1251 1143 1138 979 75 75 91 1212 40 22 1068 40 22 10 99 -3.2 996.4 – 239
1X30-I-1304 1431 1306 1302 1132 82 85 97 1380 48 22 1228 48 22 10 115 – 1150 – 323
1X40-I-1385 1530 1387 1383 1178 107 107 130 1480 36 26 1290 36 26 12 100 – 1200 – 541
1X45-I-1606 1770 1608 1604 1375 125 125 150 1710 48 30 1500 48 30 14 100 – 1400 – 802
1X45-I-1830 2002 1832 1828 1595 125 125 150 1940 54 30 1720 54 30 14 115 -4.9 1619.8 – 951
1X50-I-1997 2190 1999 1995 1731 127 132 144 2130 72 30 1880 72 30 16 109 -8 1760 – 1199
1X50-I-2400 2590 2402 2398 2110 135 145 160 2520 80 30 2280 80 30 18 118 -9 2142 – 1626

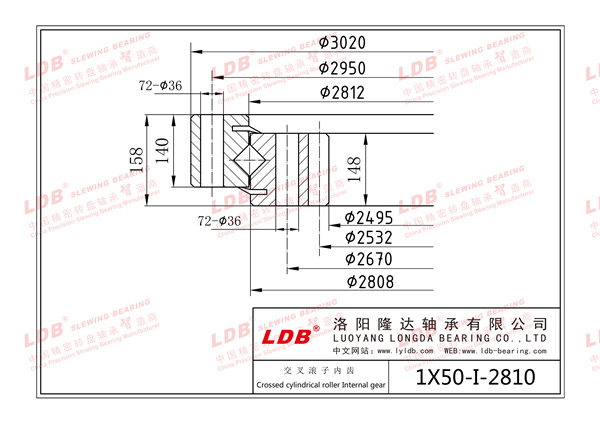

1X50-I-2810 3020 2812 2808 2495 140 148 158 2950 72 36 2670 72 36 20 126 -6 2532 – 2154

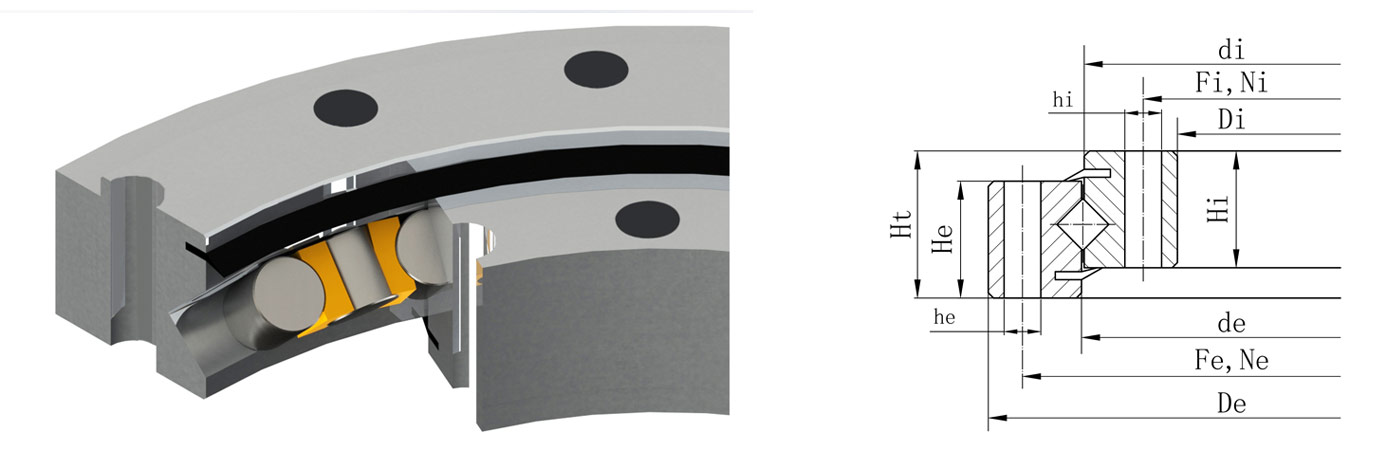

Model parameters of gearless cross roller slewing bearings

Model parameters of gearless cross roller slewing bearings

TYPE Dimensions Installation size Weight
De de di Di He Hi Ht Fe Ne he Fi Ni hi
[mm] [mm] [mm] [-] [mm] [mm] [mm] [mm] [-] [mm] [-] [kg]

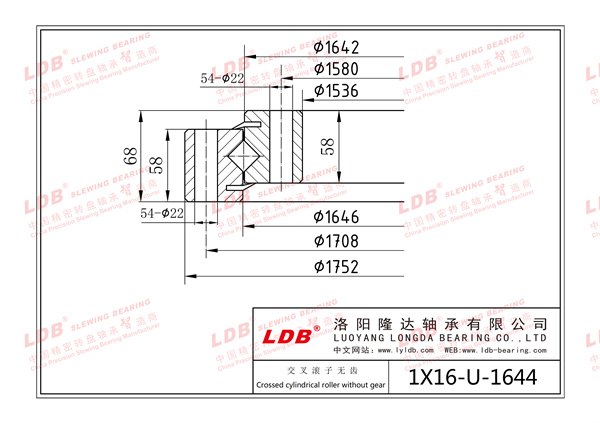

1X16-U-0220 300 221 219 140 44 44 52 270 12 18 170 12 18 16
1X16-U-0270 350 271 269 190 44 44 52 320 16 18 220 16 18 20

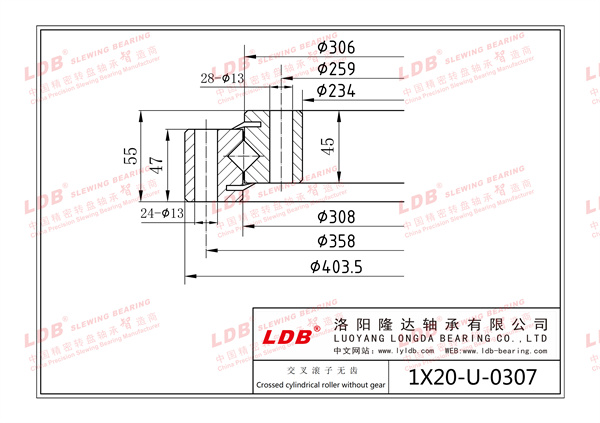

1X20-U-0307 403.5 308 306 234 47 45 55 358 24 13 259 28 13 26
1X20-U-0340 440 341.5 338.5 240 53 53 60 400 18 22 280 18 22 37
1X14-U-0414 486 415 413 342 44.5 44.5 56 460 24 14 368 24 14 28
1X14-U-0544 616 545 543 472 44.5 44.5 56 590 32 14 498 32 14 38
1X14-U-0644 716 645 643 572 44.5 44.5 56 690 36 14 598 36 14 44

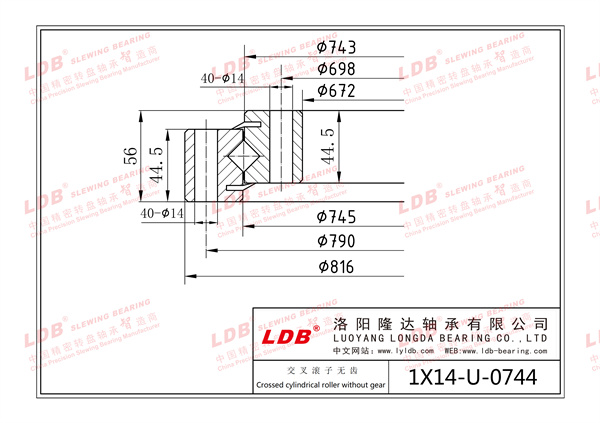

1X14-U-0744 816 745 743 672 44.5 44.5 56 790 40 14 698 40 14 52
1X14-U-0844 916 845 843 772 44.5 44.5 56 890 40 14 798 40 14 60
1X14-U-0944 1016 945 943 872 44.5 44.5 56 990 44 14 898 44 14 67
1X14-U-1094 1166 1095 1093 1022 44.5 44.5 56 1140 48 14 1048 48 14 77
1X16-U-1204 1289 1206 1202 1119 58 58 68 1257 45 16 1151 45 16 124
1X16-U-1314 1399 1316 1312 1229 58 58 68 1367 50 16 1261 50 16 135
1X16-U-1424 1509 1426 1422 1339 58 58 68 1477 54 16 1371 54 16 146

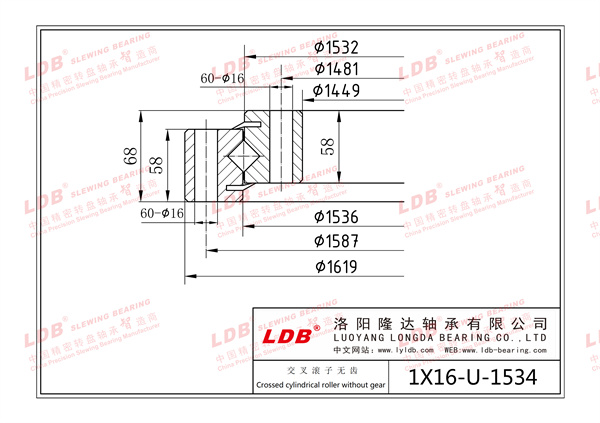

1X16-U-1534 1619 1536 1532 1449 58 58 68 1587 60 16 1481 60 16 158
1X16-U-1644 1752 1646 1642 1536 58 58 68 1708 54 22 1580 54 22 214
1X16-U-1754 1862 1756 1752 1646 58 58 68 1818 60 22 1690 60 22 228

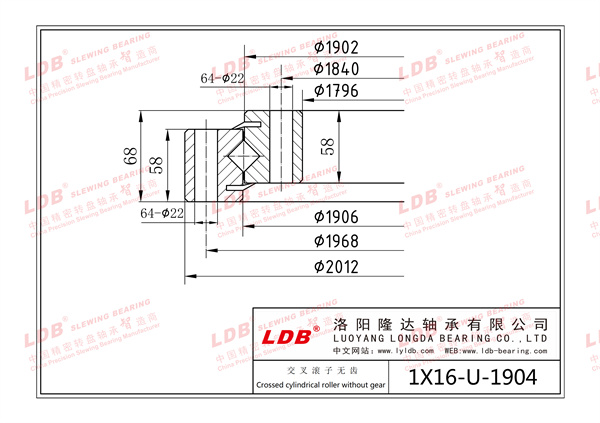

1X16-U-1904 2012 1906 1902 1796 58 58 68 1968 64 22 1840 64 22 248
