VE Series Slew Drive
VE Series Slew Drive

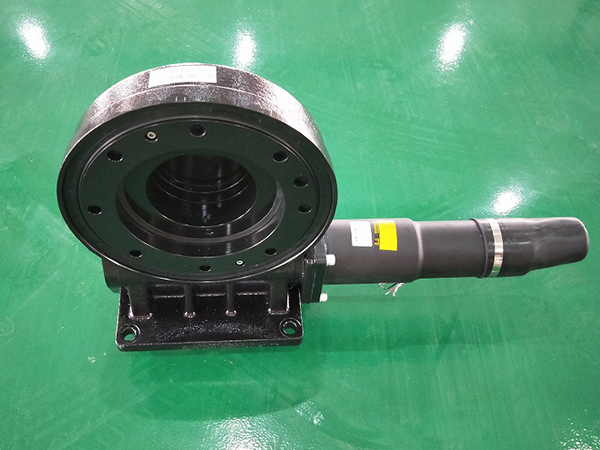

The VE Series slew drive is a key component of solar tracking systems, ensuring that solar panels follow the path of the sun to maximize solar energy capture. Vertical structure design, closed structure, single flange or double flange output. The VE series is designed for solar single- and dual-axis trackers to transmit high torque and bear heavy weight.

The advantage of this series of slew drive is the vertical structure design. The vertical structure design is mainly used for solar tracking power generation. Its special structure effectively simplifies the complex structure design of the EPC bracket and reduces the overall system cost. Vertical design is more competitive in the market.

Range of external diameter: 300 mm to 21000 mm

Ring material: 42CrMo / 50Mn/ C45

Ball/roller material: GCr15

Weight: 17-370kg

Lead Time: 30 days

Catalogue Download Request Quote

VE SERIES SLEW DRIVE

TYPE Parameter
Output torque Overturning moment Holding torque Axial static load Radial load Axial dynamic load Radial dynamic load Reduction ratio Accuracy class Weight
VE3 400 N.m 500 N.m 2000 N.m 30 kN 15kN 9.6 kN 8.4 kN 62:1 ≤0.02° 17kg
295l lbf.ft 369 lbf.ft 1457 lbf.ft 6744 lbf 3372 lbf 2158 lbf 1888 lbf
VE6 2000 N.m 9 kN.m 10000 N.m 60 kN 120 kN 14.4 kN 63 kN 30:1 ≤0.17° 45kg
1480 lbf.ft 6642 lbf.ft 7375 lbf.ft 13488.7 lbf 26977.4 lbf 3237.1 lbf 14162.4 lbf

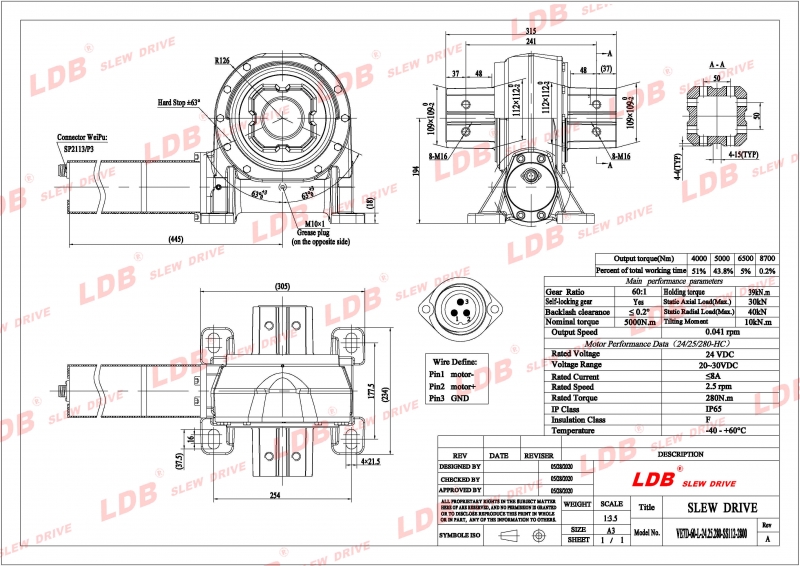

VE7 1500 N.m 6000 N.m 10400 N.m 133 kN 53 kN 32 kN 28 kN 73:1 ≤0.02° 37kg
1107 lbf.ft 4425 lbf.ft 7671 lbf.ft 29900 lbf 11915 lbf 7194 lbf 6295 lbf

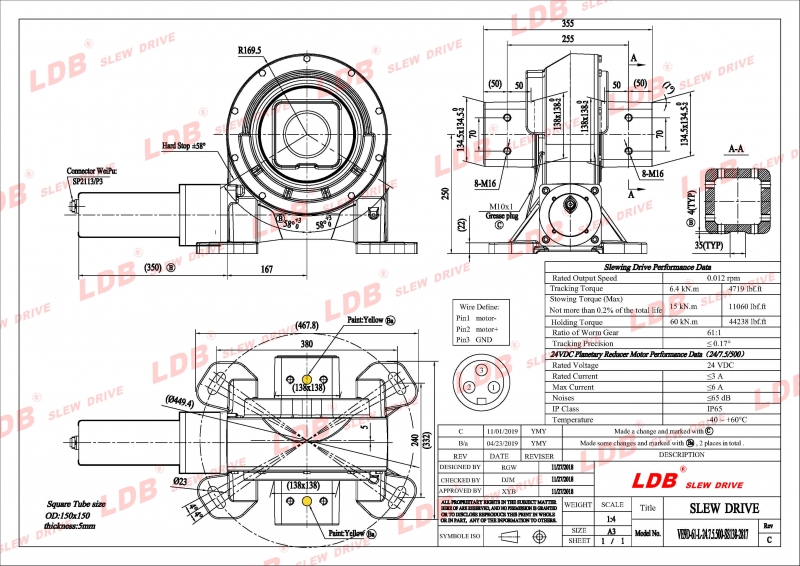

VE9A 6.5 kN.m 12 kN.m 12 kN.m 338 kN 120 kN 81 kN 61 kN 61:1 ≤0.17° 58kg
4794 lbf.ft 8851 lbf.ft 8851 lbf.ft 76000 lbf 27000 lbf 18000 lbf 14000 lbf
VE17 20 kN.m 65 kN.m 75 kN.m 50 kN 120 kN 81:1 ≤0.15° 150kg
14760 lbf.ft 47970 lbf.ft 55350 lbf.ft 11200 lbf 2698000 lbf
VE21 23 kN.m 100 kN.m 105.8 kN.m 80 kN 160 kN 125:1 ≤0.15° 370kg
16970 lbf.ft 73800 lbf.ft 78080 lbf.ft 17980 lbf 35970 lbf
