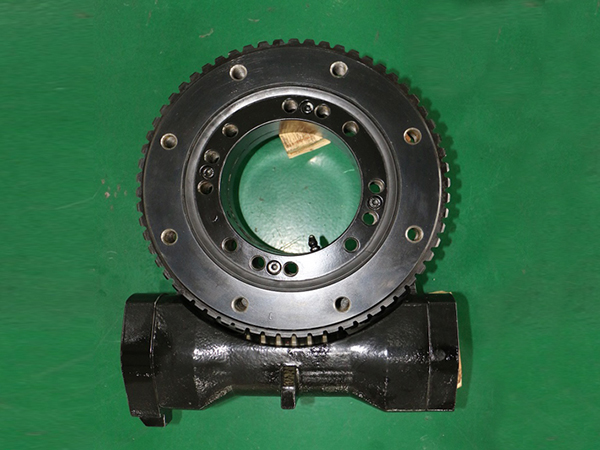

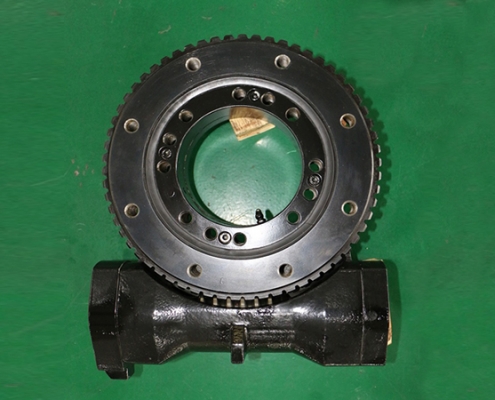

S SERIES SLEWING DRIVE
The S Series slew drive is a type of slewing drive mechanism designed for applications that require high stiffness, reliable motion control, and the ability to handle high torque. These slew drives are particularly suitable for applications in solar tracking systems, wind turbines, construction equipment, and a variety of industrial machinery.
Model: S Serie slew drive
Type: worm gear reducer
Weight: 37-87kg
Output torque:6.5 kN.m – 10 kN.m
Lead Time: 30-60 days
Product Parameter
S SERIES SLEW DRIVE
| TYPE | Parameter | |||||||||
| Output torque | Overturning moment | Holding torque | Axial static load | Radial static load | Axial dynamic load | Radial dynamic load | Reduction ratio | Accuracy class | Weight | |
| S9 | 6.5 KN.m | 33.9 KN.m | 38.7 KN.m | 338 KN | 135 KN | 81 KN | 71 KN | 61:1 | ≤0.17° | 37kg |
| 4794 lbf.ft | 25000 lbf.ft | 29000 lbf.ft | 76000 lbf | 30000 lbf | 18000 lbf | 16000 lbf | ||||
| S12 | 7.5 KN.m | 54.3 KN.m | 43 KN.m | 475 KN | 190 KN | 114 KN | 100 KN | 78:1 | ≤0.17° | 41kg |
| 5532 lbf.ft | 40000 lbf.ft | 32000 lbf.ft | 107000 lbf | 43000 lbf | 26000 lbf | 23000 lbf | ||||
| S14 | 8 KN.m | 67.8 KN.m | 48 KN.m | 555 KN | 222 KN | 133 KN | 117 KN | 85:1 | ≤0.17° | 47kg |
| 5900 lbf.ft | 50000 lbf.ft | 35000 lbf.ft | 125000 lbf | 50000 lbf | 30000 lbf | 26000 lbf | ||||
| S17 | 10 KN.m | 135.6 KN.m | 72.3 KN.m | 970 KN | 390 KN | 235 KN | 205 KN | 102:1 | ≤0.15° | 87kg |
| 7400 lbf.ft | 100000 lbf.ft | 53000 lbf.ft | 218000 lbf | 88000 lbf | 53000 lbf | 46000 lbf | ||||
