HSE SERIES SLEW DRIVE
LDB’s single-cylinder slew drive for heavy vehicles was originally a customized model for hydraulic modular vehicles. Due to the special design of the slewing bearing structure, it may bear relatively large axial dynamic loads. At the same time, the large-modulus structure design can meet the requirements of modular vehicles. (Vehicles have high requirements for output torque) At present, it occupies more than 80% of the domestic market and has been recognized by customers.

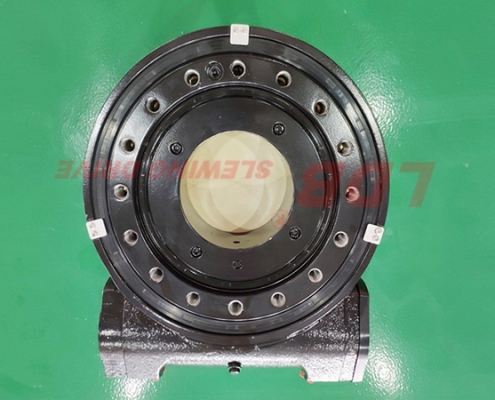

Model: HSE slew drive
Type: worm gear reducer
Weight: 53-255kg
Output torque:9 kN.m – 25 kN.m
Lead Time: 30-60 days
Product Parameter

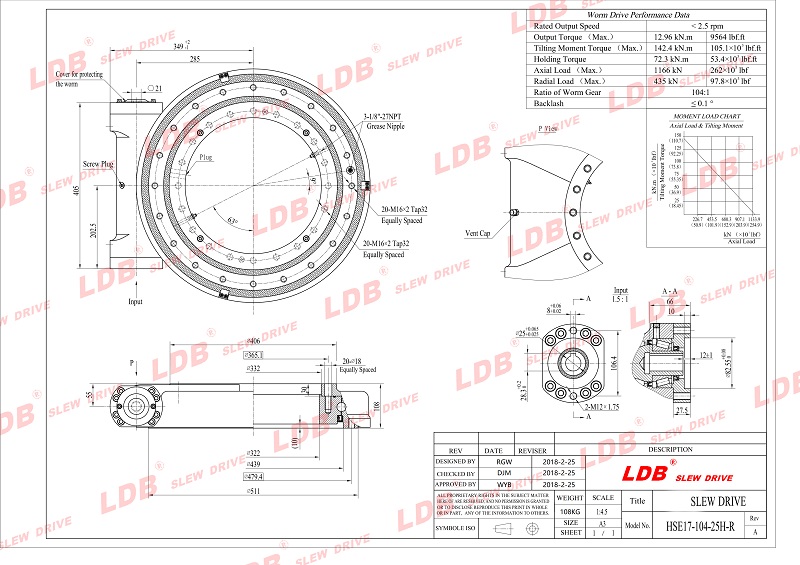

HSE Series Slew Drive
| TYPE | Parameter | |||||||||
| Output torque | Overturning moment | Holding torque | Axial static load | Radial static load | Axial dynamic load | Radial dynamic load | Reduction ratio | Accuracy class | Weight | |

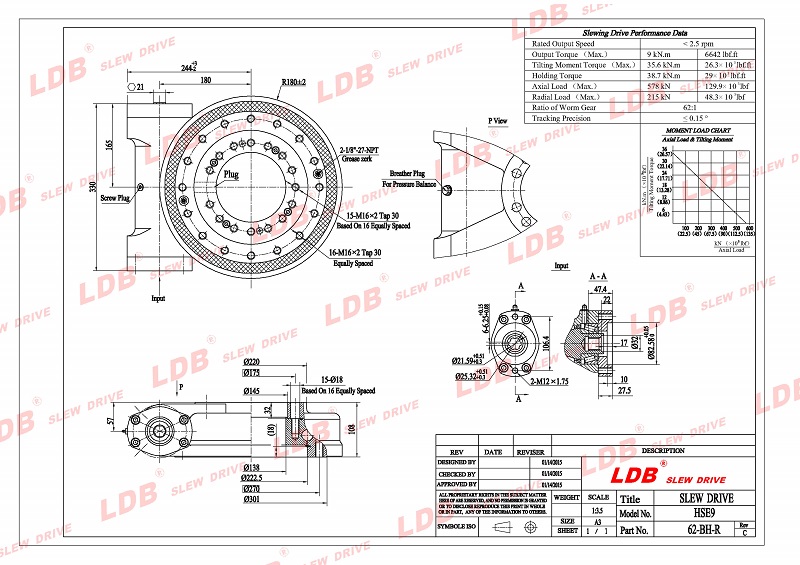

| HSE9 | 9 kN.m | 35.6 kN.m | 38.7 kN | 578 kN | 215 kN | 136 kN | 115 kN | 62:1 | <=0.15° | 53 Kg |
| 6642 lbf.ft | 26300 lbf.ft | 29000 lbf.ft | 129900 lbf | 48300 lbf | 30600 lbf | 25900 lbf | ||||
| HSE14 | 12 kN.m | 71.2 kN.m | 48 kN | 960 kN | 360 kN | 230 kN | 200 kN | 86:1 | <=0.13° | 79.5 Kg |
| 8856 lbf.ft | 52600 lbf.ft | 35000 lbf.ft | 215800 lbf | 80900 lbf | 51700 lbf | 44900 lbf | ||||

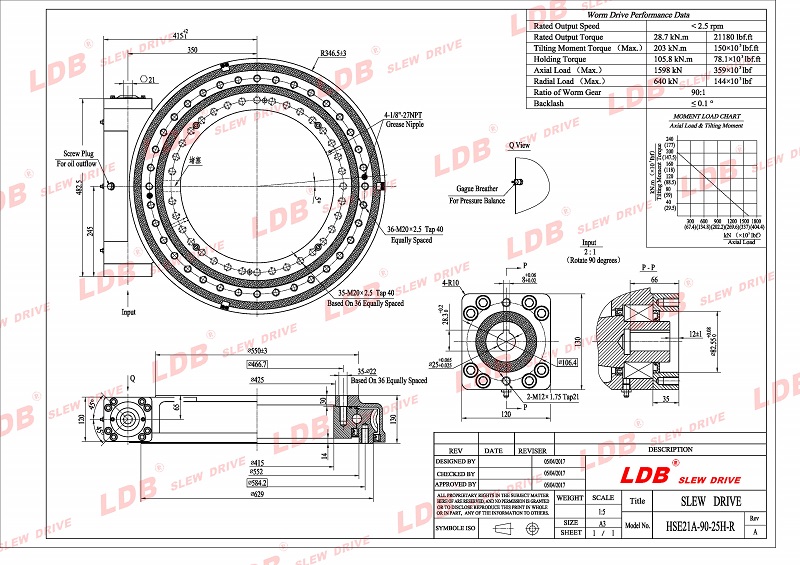

| HSE21 | 21.8 kN.m | 26.6 kN.m | 167 kN | 1058 kN | 421 kN | 265 kN | 216 kN | 82:1 | <=0.15° | 186 Kg |
| 16078 lbf.ft | 19618 lbf.ft | 125000 lbf.ft | 238000 lbf | 95000 lbf | 60000 lbf | 49000 lbf | ||||

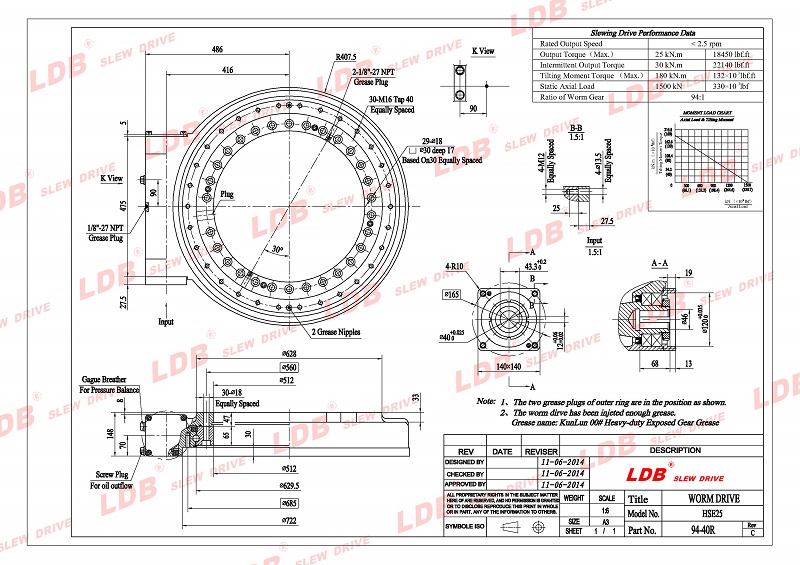

| HSE25 | 25 kN.m | 30 kN.m | 271 kN | 2360 kN | 945 kN | 590 kN | 470 kN | 94:1 | <=0.15° | 255 Kg |
| 18439 lbf.ft | 22140 lbf.ft | 200000 lbf.ft | 531000 lbf | 212000 lbf | 133000 lbf | 106000 lbf | ||||
