Guide and overview of Four-Point Contact Ball Slew Bearing

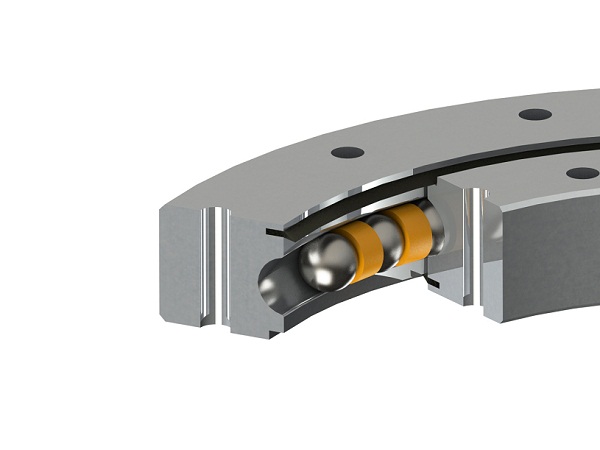

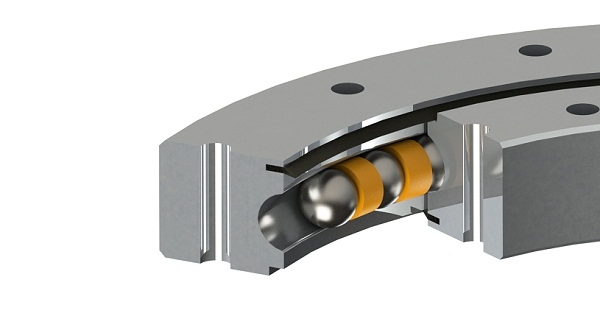

A four-point contact ball slew bearing is a type of rotational bearing designed to support large loads while providing smooth, reliable rotation. It is characterized by four points of contact between the steel balls and the bearing raceways, which allow it to carry both axial and radial loads as well as tilting moments. This feature makes the four-point contact ball slew bearing highly versatile for use in applications that require rotation and load support.
Types of Four-Point Contact Ball Slew Bearing
Single-row Four-Point Contact Ball Slew Bearing: This type has a single row of balls and is designed for lighter load applications.
Double-row Four-Point Contact Ball Slew Bearing: This type consists of two rows of balls, providing higher load-bearing capacity and better support for heavy-duty applications.
Crossed Roller Slew Bearing: Although not strictly a “ball” bearing, this type uses rollers arranged in a crisscross pattern and can support both axial and radial loads, making it suitable for similar applications.
Features of Four-Point Contact Ball Slew Bearing
Compact Design: The four-point contact configuration allows for a compact design, making it suitable for installations where space is limited.
High Load Capacity: It can carry radial, axial, and tilting loads simultaneously, making it suitable for applications with high load requirements.
Versatility: These bearings are designed to handle combined loads, including axial, radial, and moment loads, making them highly versatile.
Easy Installation: The compact size and simple structure make them easier to install in various mechanical systems.
Low Maintenance: Four-point contact ball slew bearings generally require minimal maintenance, making them cost-effective in the long term.
Applications of Four-Point Contact Ball Slew Bearing
Construction Machinery: Used in cranes, excavators, and other heavy equipment where rotation and load support are essential.
Renewable Energy: Applied in wind turbines to allow for the rotation of the turbine blades.
Automated Guided Vehicles (AGVs): Used in automated systems for handling heavy loads with rotation.
Solar Trackers: Enables the rotation of solar panels to follow the sun’s position.
Heavy Equipment: Used in other machinery, such as rotary tables, material handling systems, and industrial robots.
Tech Specs of Four-Point Contact Ball Slew Bearing
Load Capacity: Typically ranges from a few tons to several hundred tons, depending on the design and size.
Size: Can vary from small diameters (a few hundred millimeters) to very large diameters (several meters).
Material: High-strength steel is commonly used for the inner and outer rings, while ceramic or steel balls are often used for the rolling elements.
Bearing Configuration: Four-point contact ball bearings consist of two raceways and four points of contact between the balls and raceways.
Lubrication: Requires lubrication to reduce friction and wear; typically grease or oil is used.
Rotational Speed: Can support low to medium speeds depending on the load and application.
Operating Temperature: Typically operates within a range from -30°C to +120°C, though specialized materials can extend this range.
How to select four-point contact ball slew bearing?
Selecting a four-point contact ball slew bearing requires careful consideration of several factors to ensure that the bearing meets the requirements of your specific application. Here are the key steps to guide you in selecting the right bearing:
1. Determine the Load Requirements
Axial Load: The bearing must handle the axial load acting along the axis of rotation. Ensure the selected bearing can support the maximum axial load required for your application.
Radial Load: The bearing should also support radial loads that act perpendicular to the axis of rotation.
Tilting Moment (Moment Load): If your application involves tilting or turning, the bearing should handle the moment (torque) that may be applied to it.
2. Identify the Size and Dimensions
Inner and Outer Diameter: Choose a bearing with appropriate inner and outer diameters based on the space available in your machinery.
Height or Width: Ensure that the bearing’s height (or width) fits within the mechanical system’s design constraints.
Load Rating: Check the load rating (dynamic and static) provided by the bearing manufacturer to ensure it can handle the expected loads and moments during operation.
3. Consider Rotational Speed and Performance
Speed Requirements: Four-point contact ball slew bearings are generally used in low- to medium-speed applications. Consider the maximum speed at which the bearing will operate and check if the bearing can support this speed without excessive wear.
Friction and Efficiency: Lower friction bearings lead to more efficient rotation and less heat generation. Ensure the bearing type offers low friction for your application.
4. Material Selection
Raceway Material: High-strength materials like alloy steel or stainless steel are commonly used for raceways. Depending on the environmental conditions (such as exposure to corrosive elements), you may need to select stainless steel or other corrosion-resistant materials.
Ball Material: The balls are typically made of steel, ceramic, or a hybrid of both. Ceramic balls offer lower friction and better performance in harsh environments but are more expensive.
Lubrication: Depending on the environment, you may need a bearing that is pre-lubricated or one that can easily be lubricated with grease or oil. Ensure the bearing is compatible with the lubrication system.
5. Check for Environmental Conditions
Temperature Range: Consider the operating temperature range of the bearing. Standard bearings typically operate between -30°C and 120°C, but you may need special materials if your application requires operation in extreme temperatures.
Corrosion Resistance: In corrosive environments (such as offshore or chemical industries), you may need a bearing with enhanced corrosion resistance, such as stainless steel or a special coating.
Dust and Contaminant Resistance: Ensure the bearing has proper sealing or protection against dust, dirt, or other contaminants that could reduce its lifespan.
6. Bearing Configuration
Single Row vs. Double Row: Single-row bearings are suitable for lighter applications with moderate load requirements. Double-row bearings provide higher load capacity and are suitable for more demanding applications.
Sealing Type: Choose a bearing with appropriate seals if your application involves exposure to dirt, water, or chemicals.
Inner Ring or Outer Ring Rotation: Some bearings are designed for inner ring rotation, while others are for outer ring rotation. Consider which type of rotation is required in your application.
7. Design Considerations
Mounting and Alignment: Verify that the bearing is easy to mount and align properly. Poor alignment can lead to premature wear and failure.
Weight and Space Constraints: Ensure the bearing fits within the available space and meets any weight limitations in your system design.
8. Consider Service Life and Maintenance Needs
Maintenance Requirements: Choose a bearing that offers easy maintenance options, including the ability to monitor wear and replace seals or lubricants. Some bearings are designed for long service life with minimal maintenance.
Service Life (L10 Life): Check the L10 life (the point at which 90% of bearings will still be operational). A longer L10 life indicates better durability under load.
9. Manufacturer and Quality Standards
Reputation of Manufacturer: Select a reputable bearing manufacturer known for producing high-quality, reliable bearings.
Quality Certifications: Ensure the manufacturer adheres to industry standards (such as ISO, DIN) for quality control, as this ensures better reliability and performance of the bearing.
10. Cost-Effectiveness
Budget: While cost should not be the sole deciding factor, you should balance performance requirements with your budget constraints. Higher load ratings, specialized materials, and better seals will generally increase the cost of the bearing.
