Comprehensive guide on Slewing Ring Bearing

What is a Slewing Ring Bearing?

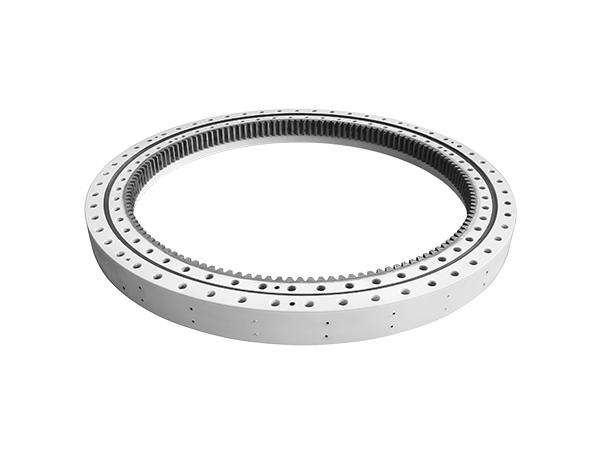

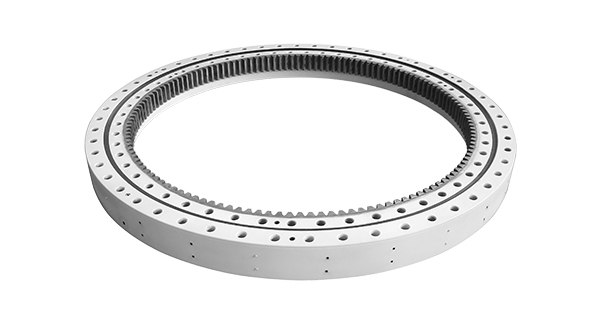

A slewing ring bearing (also known as a turntable bearing or slew bearing) is a type of large bearing designed to accommodate axial, radial, and moment loads simultaneously. It typically consists of an inner ring, outer ring, rolling elements (such as balls or rollers), and a raceway. These bearings are used in applications where rotational movement is required, often with heavy loads and low to moderate speeds.

Types of Slewing Ring Bearings

Slewing ring bearings can be classified based on several factors, including the type of rolling element and the arrangement of the bearing components:

1. Four-point contact bearings: These have four contact points between the balls and the raceways, allowing them to carry both axial and radial loads along with tilting moment loads. They are commonly used in applications where the load is evenly distributed.
2. Crossed roller bearings: In these, the rollers are arranged in a criss-cross pattern, offering high load capacity and rigidity. They can handle high axial and radial loads with better precision, often used in precise rotating mechanisms.
3. Ball type slewing bearings: These use balls as rolling elements and are suitable for applications with lighter loads and moderate rotational speeds.
4. Roller type slewing bearings: These use cylindrical or tapered rollers for heavier-duty applications, providing a higher load capacity than ball type bearings.
5. Triple-row bearings: These have three rows of rolling elements—balls or rollers—allowing them to handle higher loads and improve stiffness. They are often used in large machinery like cranes and excavators.

Features of Slewing Ring Bearings

• Load handling: Slewing ring bearings are capable of supporting axial, radial, and moment loads simultaneously, making them ideal for machines that require rotational movement under heavy loads.
• Precision: Many slewing ring bearings are designed with high precision to maintain accurate and smooth rotational movement.
• Compact design: The compact nature of slewing ring bearings makes them suitable for applications with space constraints.
• Durability: They are typically made from high-strength steel or other durable materials to withstand harsh operating conditions.
• Versatility: Slewing ring bearings can be custom-made to fit specific applications, allowing for flexible design options.
• Sealing: Many slewing bearings come with integrated seals to prevent contamination and reduce maintenance needs.

Applications of Slewing Ring Bearings

• Crane systems: Used in tower cranes, mobile cranes, and crawler cranes to allow rotation and movement of heavy loads.
• Wind turbines: For the yaw bearing in wind turbine systems, allowing the turbine to rotate and face the wind.
• Construction equipment: Excavators, loaders, and other heavy machinery use slewing ring bearings for rotational movement.
• Marine applications: Used in the turntables of radar, communication, and other systems aboard ships.
• Solar tracking systems: In solar panels, slewing rings help with tracking the sun’s position to maximize energy capture.
• Heavy industrial machinery: In machines like rotary tables and turntables for precise rotation under load.

How to Select Slewing Ring Bearings?

Selecting the right slewing ring bearing depends on several factors:

1. Load requirements: Determine the axial, radial, and moment loads the bearing must support. The type and size of the bearing should be chosen based on the load capacity needed.
2. Rotational speed: Consider the speed at which the bearing will rotate. Higher speeds might require bearings with lower friction and specialized materials.
3. Operating environment: If the bearing will operate in harsh conditions (extreme temperatures, dust, moisture), ensure it has appropriate seals and coatings to withstand these conditions.
4. Precision and rigidity: For applications requiring high precision and low deflection, like robotics or industrial machinery, choose a bearing with high rigidity, such as crossed roller bearings.
5. Space limitations: If space is a concern, a smaller, lighter slewing ring bearing may be necessary. Ensure that the bearing fits within the required dimensions without compromising performance.
6. Material selection: Choose the material based on the operating environment (corrosion resistance, high strength, etc.). Common materials include high-strength steel, stainless steel, and sometimes ceramic components for special applications.
7. Maintenance and longevity: Consider the maintenance needs of the bearing, including lubrication intervals, ease of replacement, and expected operational lifespan.

By carefully evaluating these factors, you can select the slewing ring bearing best suited to your application, ensuring optimal performance and longevity.

Supplier of Slewing Ring Bearing

LDB Bearing is a professional slewing ring bearing manufacturer has rich experience in supplying high quality and precision slewing bearing for large projects. If you are looking for slewing ring bearing for your projects, feel free to contact us.
