How to Install a Slewing Bearing: Step-by-Step Guide for Heavy Machinery

/in , /by

What Is a Slewing Bearing?

A slewing bearing is a large rotating component that supports heavy loads while enabling rotation between two structures. These bearings handle axial loads, radial loads, and tilting moments simultaneously. They are essential in cranes, excavators, wind turbines, and other heavy machinery.

Slewing bearings are precision-engineered components. They arrive from the manufacturer with specific tolerances, hardening patterns, and surface finishes. However, even the highest-quality slewing bearing will fail prematurely if installed incorrectly. Proper installation ensures the bearing performs as designed and achieves its expected service life.

Why Proper Installation Is Critical for Slewing Bearing Service Life

Proper installation is the bridge between a quality slewing bearing and reliable operation. A poorly installed bearing will fail regardless of its material grade or manufacturing precision.

The consequences of improper installation

When a slewing bearing is installed on an uneven or non-rigid mounting surface, the load does not distribute evenly across the rolling elements. Some rollers carry far more load than others, creating stress concentrations that lead to raceway indentation and spalling. Loose bolts allow the bearing to shift under load, causing misalignment and accelerated wear. Over-tightened bolts can stretch or fracture, risking catastrophic failure.

Industry data shows that a deviation of just 0.5mm in alignment can create contact pressures 300% higher than intended in specific raceway zones. This localized overloading dramatically shortens slewing bearing life. Proper installation prevents these problems before they start.

The key factors in successful installation

Successful slewing bearing installation depends on four factors: a flat and rigid mounting surface, correct bolt torque, proper positioning of the hardness gap, and adequate initial lubrication. Each factor is essential. Neglecting any one compromises the entire installation.

How to Install a Slewing Bearing Properly

This section walks through the complete installation process step by step. Follow these steps carefully to ensure your slewing bearing performs as designed.

Step 1: Prepare the Mounting Surface

Before installing a slewing bearing, inspect both the bearing and the mounting structure. The bearing should be free of damage, corrosion, or contamination from shipping and storage. Remove preserving agents from the slewing bearing’s contact surfaces and gearing using an alkaline cleaning agent. Do not let solvent enter the seals or raceway.

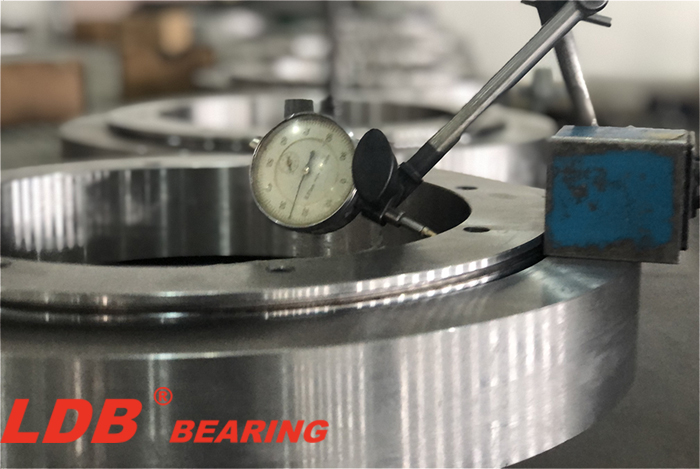

Check the mounting surface flatness. The structure must be rigid and flat to ensure even load distribution across the slewing bearing. If the surface is not completely supported, rework it before proceeding. Use a feeler gauge to check for gaps between the bearing and the mounting surface.

Important: Hardness Gap Positioning

Every slewing bearing ring has an unhardened section between the beginning and end of raceway hardening. This is marked with an “S” on the interior or exterior diameter. Position this “S” mark outside the main load area when the application’s primary load direction is known. This simple step prevents premature failure in the slewing bearing’s most vulnerable zone.

Step 2: Position and Align the Slewing Bearing

Use appropriate lifting equipment rated for the slewing bearing’s weight. Attach lifting straps to designated lifting points, ensuring even weight distribution. Lower the slewing bearing onto the mounting surface, aligning it with pre-marked positions and bolt holes. Use guide pins or alignment tools to help precisely position the slewing bearing.

The installation position of the slewing bearing must match the drawing. Do not force the bearing into position. If bolt holes do not align, investigate the cause rather than applying excessive force.

Step 3: Install Bolts for the Slewing Bearing

Bolts are critical to slewing bearing performance. The bolt joints must handle the full load of the bearing.

Bolt Selection and Preparation

Fixing bolts normally belong to strength class 10.9 according to DIN ISO 267. Clearance holes should be designed per DIN EN 20273 medium range. Use a thread-locking compound to prevent loosening from vibration.

Tightening Procedure

Tighten the slewing bearing bolts in a cross-pattern (star pattern) to ensure even pressure distribution. Follow these stages:

  1. First stage: Tighten to 30-50% of final torque
  2. Second stage: Tighten to 70-80% of final torque
  3. Third stage: Tighten to 100% of specified torque

Use a calibrated torque wrench. Hydraulic tensioners may be necessary for larger slewing bearings. The table below shows reference tightening torques for common bolt sizes:

Bolt SizeClass 10.9 Torque (Nm)Class 8.8 Torque (Nm)
M12117-13779
M16279-338193
M20558-661387
M24954-1,136666
M301,8901,350

Note: Values based on μ ≈ 0.14. Consult manufacturer specifications for exact values for your slewing bearing.

Post-Installation Bolt Checks

After the slewing bearing has operated for a short period (typically a few hours), recheck the bolt torque and retighten if necessary. Bolts can creep or elongate due to settling of the mounting structure.

Step 4: Check Gear Backlash in the Slewing Bearing

If your slewing bearing includes integral gear teeth, check tooth flank clearance. The minimum clearance should be 0.03-0.04 times the module on the three teeth marked in green. After final fixing of the slewing bearing, check flank clearance over the entire circumference.

Step 5: Lubricate the Slewing Bearing

Most slewing bearings require initial greasing before operation. Use the manufacturer-recommended grease and fill grease points until fresh grease exits the seals. This ensures lubricant reaches all rolling elements and flushes out any remaining preservative.

Final Checks for the Installed Slewing Bearing

Rotate the slewing bearing to ensure smooth, consistent movement. Any binding or tight spots indicate installation problems that need investigation. The bearing should rotate freely without unusual noise or resistance.

Check vertical clearance between the slewing bearing and mounting surface to confirm correct seating.

Verify seals are intact and properly placed to prevent contamination.

How LDB Supports Proper Slewing Bearing Installation

LDB Bearing designs and manufactures high-quality slewing bearings for heavy machinery applications. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC.

LDB’s installation support:

  • Technical documentation: Detailed installation instructions and torque specifications
  • Engineering support: Application engineering for bolt selection and mounting design
  • Quality assurance: ISO 9001-certified manufacturing with dimensional records retained for every bearing
  • Global reach: Serving 73 countries with over 500,000 units in service

Proper slewing bearing installation extends service life and prevents premature failure. Understanding the key steps—surface preparation, hardness gap positioning, bolt torque, and backlash checking—enables reliable operation. LDB offers the technical expertise and quality assurance that equipment manufacturers and operators need.

Contact LDB Bearing today to discuss your slewing bearing installation requirements.

FAQs

1. What is the hardness gap (“S” mark) on a slewing bearing?
The hardness gap is the unhardened section between the beginning and end of raceway hardening, marked with an “S”. Position this mark outside the main load area to prevent premature failure.

2. How should slewing bearing bolts be tightened?
Tighten bolts in a cross-pattern (star pattern) in three stages: 30-50%, 70-80%, and 100% of final torque. Use a calibrated torque wrench and follow manufacturer specifications.

3. What is the minimum tooth flank clearance for a slewing bearing?
The minimum clearance should be 0.03-0.04 times the module. Check clearance on the three marked teeth and over the entire circumference after final installation.

4. How do I check if the mounting surface is suitable for a slewing bearing?
Check flatness with accurate measurement instruments. Use a feeler gauge to verify the bearing surface is completely supported. Rework the surface if it does not meet specifications.

5. When should I retighten slewing bearing bolts after installation?
Recheck bolt torque after the bearing has operated for a short period (typically a few hours). Bolts can settle due to structure settling and may need retightening.

Seals and Lubrication for Longer Slewing Bearing Life

/in , /by

What Is a Slewing Bearing?

A slewing bearing is a large rotating component that supports heavy loads while enabling rotation between two structures. These bearings handle axial loads, radial loads, and tilting moments simultaneously. They operate in harsh environments—construction sites, mines, offshore platforms, and wind farms—where dust, water, and temperature extremes are constant threats.

Seals and lubrication work together to protect the slewing bearing from these threats. Seals keep contaminants out. Lubrication keeps moving surfaces apart. When either fails, the bearing fails prematurely. Understanding how these two systems work together helps operators extend bearing life and reduce maintenance costs.

Why Seals Are Critical for Slewing Bearing Protection

Seals are the slewing bearing’s first line of defense. They prevent contaminants from entering the raceway. They also keep lubricant inside the bearing where it belongs.

Contaminants destroy slewing bearings

Dirt, dust, water, and debris are the enemies of slewing bearings. When contaminants enter the raceway, they mix with grease to form an abrasive paste. This paste grinds away the rolling elements and raceways. The result is accelerated wear, increased friction, and premature failure.

In marine environments, saltwater ingress triggers electrochemical corrosion that degrades raceways even when the bearing is not rotating. In dusty mining applications, abrasive particles quickly destroy unsealed or poorly sealed slewing bearings.

Common seal types for slewing bearings

  • Heavy-duty rubber seals: Standard protection for most applications. These seals provide a basic barrier against dust and light moisture.
  • Labyrinth seals: Superior protection in extremely dusty or wet conditions. These seals use a complex path that contaminants cannot easily traverse.
  • Multi-lip seals: Enhanced protection with two or more sealing lips. Each lip provides an additional barrier against contamination.
  • Fluororubber seals: For high-temperature or chemically aggressive environments. These seals resist degradation from heat and chemicals that destroy standard rubber.

Seal inspection and replacement

Regular seal inspection is essential. Check for cracks, tears, hardening, or gaps between the seal and the ring. Ensure seals seat tightly with no deformation or misalignment. Replace damaged seals immediately.

Lubrication: The Second Line of Defense for Slewing Bearings

Lubrication separates the rolling elements from the raceways. It prevents metal-to-metal contact. Without lubrication, the slewing bearing would fail within hours under heavy load.

How lubrication protects slewing bearings

Proper lubrication forms a thin film between rolling elements and raceways. This film reduces friction, prevents wear, and carries heat away from contact areas. It also protects against corrosion and flushes out contaminants.

Grease types for slewing bearings

  • Lithium-based EP grease: Standard for most applications. Provides good extreme pressure protection and water resistance.
  • Polyurea grease: Superior water resistance. Good for marine and outdoor applications.
  • Calcium-sulfonate grease: Excellent extreme pressure properties. Good for heavy-load applications.
  • Synthetic grease: For high-temperature or low-temperature applications. Maintains viscosity over a wide temperature range.

Lubrication intervals for slewing bearings

Lubrication frequency depends on operating conditions:

  • Normal use: Every 100-200 operating hours
  • Heavy-duty/continuous operation: Every 50-100 hours
  • Harsh environments (dusty, wet, shock loads): Shorten intervals
  • Long-term storage: Re-grease every 6 months

Lubrication technique

Proper technique ensures effective lubrication of the slewing bearing:

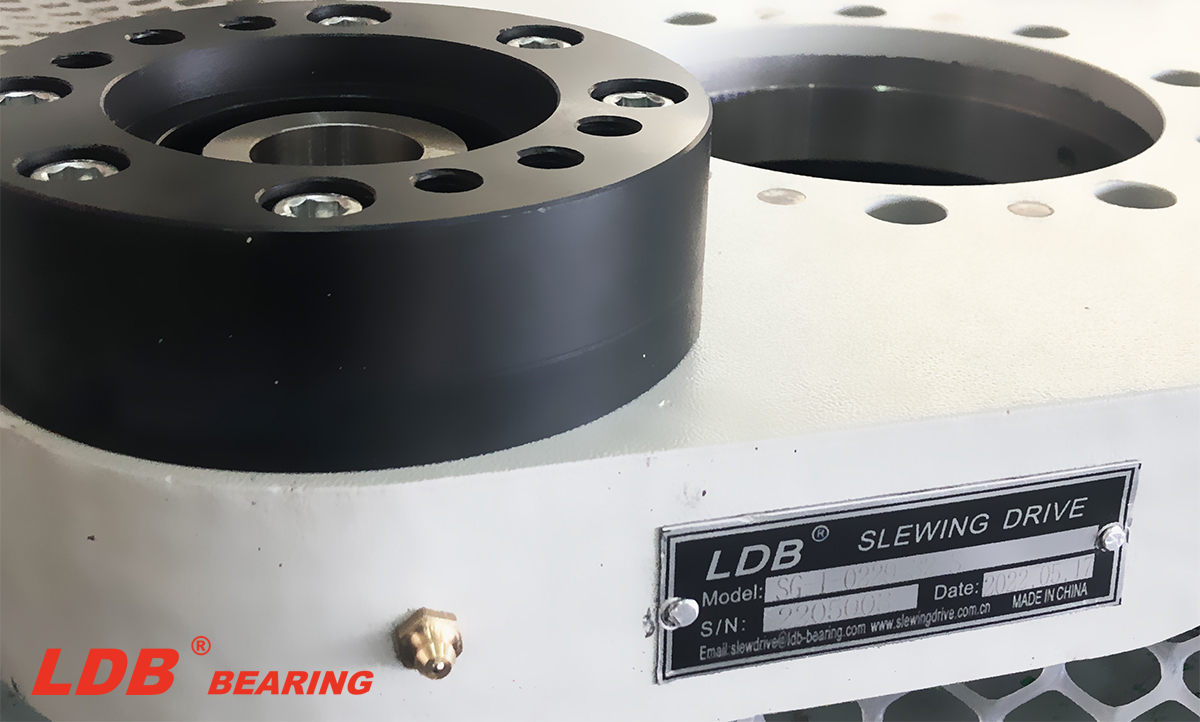

  1. Clean grease nipples before injecting to avoid introducing dirt
  2. Slowly rotate the bearing while greasing to ensure even distribution
  3. Apply until fresh grease exits the seals to purge old grease and contaminants
  4. Wipe excess grease to prevent dirt from sticking to overflow

How Seals and Lubrication Work Together in Slewing Bearings

Seals and lubrication are not independent systems. They work together to protect the slewing bearing. When seals fail, contaminants enter and destroy the lubricant. When lubrication fails, seals wear faster and contaminants enter more easily.

The seal-lubrication cycle

  1. Seals keep contaminants out of the slewing bearing
  2. Lubricant forms a protective film between rolling elements and raceways
  3. Fresh lubricant pushes out old grease and contaminants
  4. Seals retain the fresh lubricant
  5. Repeat

When the cycle breaks

Seal damage allows contaminants to enter the slewing bearing. These contaminants mix with the grease. The grease becomes an abrasive paste. The paste grinds away the raceway. The bearing fails.

Lubricant degradation also breaks the cycle. When grease breaks down, it no longer protects the bearing. Friction increases. Heat builds up. Seals harden and crack. Contaminants enter. The bearing fails.

Warning signs of seal or lubrication failure

  • Grease leakage around the seal
  • Contaminated grease (discolored, gritty, or watery)
  • Unusual noise during rotation
  • Increased rotational resistance
  • Overheating of the slewing bearing
  • Visible seal damage (cracks, tears, or gaps)

Common Seal and Lubrication Mistakes

Mistake 1: Using the wrong grease

Different slewing bearing applications require different greases. A grease that works well in a dry, temperate environment may fail in a hot, wet environment. Always match the grease to the operating conditions.

Mistake 2: Mixing different greases

Different greases have different thickeners and additives. Mixing them can cause chemical reactions that break down the lubricant. Never mix grease types without thoroughly purging the old grease first.

Mistake 3: Ignoring seals during inspection

Many maintenance programs focus on lubrication and ignore seals. Damaged seals allow contaminants to enter the slewing bearing. These contaminants destroy the grease and the bearing. Inspect seals every time you lubricate.

Mistake 4: Overgreasing

Too much grease can be as bad as too little. Overgreasing creates pressure that can damage seals and cause overheating. Follow the manufacturer’s recommendations for grease quantity.

Mistake 5: Using standard seals in harsh environments

Standard rubber seals are not sufficient for harsh environments. High temperatures, chemicals, and UV exposure degrade rubber quickly. In harsh conditions, specify seals designed for those conditions.

Application-Specific Considerations for Slewing Bearings

Construction and mining equipment

These applications involve heavy loads, shock loads, and abrasive dust. The slewing bearing must be sealed against dust infiltration. Use heavy-duty rubber seals or labyrinth seals. Lubricate frequently—every 50-100 operating hours. Use EP grease with good water resistance.

Marine and offshore applications

Saltwater is the main threat. The slewing bearing must be protected against corrosion and water ingress. Use fluororubber seals or multi-lip seals for superior water resistance. Choose grease with excellent corrosion protection and water resistance. Rinse the bearing area with fresh water regularly to remove salt buildup.

Wind turbines

Pitch and yaw bearings are located high above ground. Access for maintenance is difficult. The slewing bearing must provide long service life with minimal maintenance. Use high-quality seals that resist UV and ozone. Choose synthetic grease that maintains viscosity over a wide temperature range. Consider automatic lubrication systems for consistent lubrication.

Solar trackers

Solar tracker slewing bearings operate outdoors in varying conditions. They face UV radiation, temperature swings, and dust. Some applications use lubrication-free designs with polymer sliding elements. For grease-lubricated designs, use sealed bearings with long-life grease.

Maintenance Best Practices for Slewing Bearings

Establish a maintenance schedule

Create a written schedule for lubrication and inspection. Follow the schedule consistently. Document all maintenance activities for future reference.

Use the right tools

Use a calibrated grease gun to apply the correct amount of grease. Use a torque wrench to check bolt torque. Use inspection tools to check seals and bearings.

Train operators and maintenance staff

Operators should know the warning signs of slewing bearing problems. Maintenance staff should know proper lubrication and inspection techniques. Training prevents mistakes that damage bearings.

Keep records

Record lubrication dates, grease types, inspection results, and any issues found. These records help identify patterns and improve maintenance planning.

How LDB Bearing Supports Seal and Lubrication Requirements

LDB Bearing designs and manufactures slewing bearings with robust sealing and lubrication systems. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.

LDB’s seal and lubrication capabilities:

  • Seal options: Heavy-duty rubber, labyrinth, multi-lip, and fluororubber seals matched to operating environments
  • Lubrication design: Accessible grease fittings and well-designed grease channels for even distribution
  • Customization: Special seals and lubricants for harsh environments, including marine and high-temperature applications
  • Quality assurance: ISO 9001-certified manufacturing with documented inspection reports
  • Engineering support: Application engineering for seal and lubrication specification

Serving 73 countries with over 500,000 units in service, LDB delivers the reliability that heavy machinery applications demand. Understanding how seals and lubrication work together to protect slewing bearings enables better selection, installation, and maintenance practices. LDB offers the technical expertise and quality assurance that equipment manufacturers and operators need for reliable, long-term operation.

Contact LDB Bearing today to discuss your slewing bearing seal and lubrication requirements.

FAQs

1. Why are seals important for slewing bearings?
Seals keep contaminants out and lubricant in. Without effective seals, dirt and moisture enter the raceway, creating abrasive paste that destroys the bearing.

2. What type of grease is best for slewing bearings?
Lithium-based EP grease is standard. For marine or wet environments, use polyurea or calcium-sulfonate grease. For high-temperature applications, use synthetic grease. Always match the grease to the operating conditions.

3. How often should I lubricate a slewing bearing?
Lubrication intervals depend on operating conditions. Normal use: every 100-200 hours. Harsh environments: every 50-100 hours. Follow the manufacturer’s recommendations for your specific application.

4. What happens if I mix different grease types?
Mixing different grease types can cause chemical reactions that break down the lubricant. This can lead to increased wear, overheating, and premature failure. Always thoroughly purge old grease before switching types.

5. How do I know if a seal is damaged?
Inspect seals regularly for cracks, tears, hardening, or gaps. If you see grease leakage, discolored grease, or contaminants around the seal, the seal may be damaged and needs replacement.

How Eccentric Loads Affect Slewing Bearing Performance

/in , /by

What Is a Slewing Bearing?

A slewing bearing is a large rotating component that supports heavy loads while enabling rotation between two structures. These bearings handle axial loads, radial loads, and tilting moments simultaneously. They are essential in cranes, excavators, wind turbines, and other heavy machinery.

In real-world applications, these bearings rarely experience perfectly centered loads. The boom extends outward, the load sits at a radius, and dynamic forces create uneven pressure on the bearing. Understanding how eccentric loads affect slewing bearing performance helps engineers select the right bearing and avoid premature failure.

What Are Eccentric Loads and How Do They Affect Slewing Bearings?

An eccentric load occurs when the applied force does not pass through the center of the bearing. Instead, the load acts at a distance from the bearing axis, creating a tilting moment or overturning force on the slewing bearing.

In a crane, the lifted load at the end of the boom creates an eccentric load on the slewing bearing. The further the load extends from the center, the greater the tilting moment. In an excavator, digging forces at the bucket create eccentric loads on the swing bearing. Wind pressure on a wind turbine rotor creates eccentric loads on the yaw bearing.

Three load types combine in eccentric loading on slewing bearings:

  • Axial load: Vertical force from the weight of the structure and payload
  • Radial load: Horizontal force from wind, side loads, or acceleration
  • Tilting moment: The overturning force created when loads act at a distance from the bearing center

The tilting moment is often the dominant load type and the primary cause of eccentric load problems on slewing bearings. It is calculated as load multiplied by the distance from the bearing center.

How Eccentric Loads Change Load Distribution in Slewing Bearings

Under perfect conditions, a slewing bearing distributes the load evenly across all rolling elements. Each ball or roller carries roughly the same share of the total load.

Eccentric loads change this pattern dramatically. Rolling elements on the side of the tilting moment carry much higher loads than elements on the opposite side. Some elements may even lose contact with the raceway entirely.

A deviation of just 0.5mm in alignment can create contact pressures 300% higher than intended in specific raceway zones of the slewing bearing. This localized overloading accelerates wear and reduces bearing life.

Research shows that under eccentric load conditions, the contact angle of rolling elements changes significantly. This alteration can cause the rolling elements to contact the raceway at the edge rather than the center. This edge loading creates stress concentrations that lead to spalling and premature failure of the slewing bearing.

Vibration and Dynamic Effects of Eccentric Loading on Slewing Bearings

Eccentric loads create complex dynamic behavior in slewing bearings. Unlike static loading, eccentric loads produce time-varying forces that change as the machine rotates and moves.

The friction torque in a slewing bearing under eccentric load incorporates several components:

  • Viscous friction from lubricant shearing
  • Sliding friction between rolling elements and raceways
  • Elastic hysteretic friction from material deformation

These friction components vary as the bearing rotates, creating fluctuations in rotational resistance. Operators may notice uneven rotation, binding in certain positions, or increased vibration in the slewing bearing.

Studies have demonstrated that under eccentric load conditions, the vibration amplitude of a slewing bearing can increase significantly. Time-domain analysis reveals defect size-dependent amplitude characteristics, with peak increases of up to 42.6% observed under eccentric loading. This increased vibration can damage other components and create noticeable operational issues.

The dynamic coupling between external drive gear vibration and internal bearing contact creates complex load transfer patterns that affect the service life of the slewing bearing. These interactions cannot be captured by simple static analysis.

Common Failure Modes in Slewing Bearings from Eccentric Loading

Raceway indentation and brinelling

Localized overloading from eccentric loads can cause permanent indentation of the raceway in the slewing bearing. Even slight overloads can dimple a bearing race. A dimple that starts at 1/1000th of an inch will almost always get bigger. These indentations create stress concentrations that accelerate spalling.

Edge spalling and chipping

When rolling elements contact the edge of the raceway due to tilting moments, edge loading occurs on the slewing bearing. This causes spalling and chipping at the raceway edge. Edge spalling can lead to catastrophic failure if not addressed.

Uneven wear patterns

Poor work distribution leads to uneven wear patterns in the slewing bearing, usually causing excessive play. For example, lifting with a boom and undercarriage in the same position every time—such as curbside digging with an excavator—can dimple the slewing bearing race near the uneven load.

Accelerated fatigue

The combination of higher contact stresses and complex dynamic behavior under eccentric loads accelerates rolling contact fatigue in the slewing bearing. Spalling begins as microscopic surface fatigue cracks that propagate and eventually cause pieces of the raceway material to detach.

Design Considerations for Slewing Bearings in Eccentric Load Applications

Higher static safety factors

For applications with significant eccentric loading, higher static safety factors for the slewing bearing are required. Typical values range from 1.5 to 2.0 for normal operation. For applications with frequent shock loads and eccentric conditions, factors of 2.5 to 4.0 are recommended.

Raceway profile optimization for slewing bearings

Modern slewing bearings use optimized raceway geometries to distribute stress more evenly under eccentric loads. Logarithmic profiles reduce peak Hertzian pressure by approximately 12% under tilted conditions. This design approach extends the life of the slewing bearing in applications where eccentric loads are unavoidable.

Material and heat treatment for slewing bearings

For applications with significant eccentric loading, higher-grade materials such as 42CrMo4 with proper heat treatment are essential for the slewing bearing. Raceway hardness of 55–62 HRC with hardened layer depth of 3–6mm provides the resistance to indentation and spalling required under uneven loading.

Rolling element selection for slewing bearings

Research indicates that reducing the number of rollers can improve dynamic characteristics of slewing bearings under excessive eccentric loading. This counterintuitive finding highlights the importance of application-specific design optimization for slewing bearings.

Practical Tips for Reducing Eccentric Load Effects on Slewing Bearings

Optimize work patterns

Avoid repeatedly positioning the load in the same orientation. In excavator operation, vary the digging position rather than always working on the same side. This distributes wear more evenly across the slewing bearing raceway.

Maintain proper bolt torque

Loose mounting bolts are one of the most common causes of premature slewing bearing failure under eccentric loads. Establish a bolt torque check schedule—typically after the first 50-100 operating hours, then at regular intervals. Tighten in a cross-pattern to ensure even clamping force.

Regular inspection of slewing bearings

Monitor for warning signs of eccentric load damage on the slewing bearing:

  • Uneven rotation or binding
  • Grinding or popping noises during rotation
  • Increased play or clearance in the bearing
  • Visible wear patterns on the raceway

Lubrication management for slewing bearings

Eccentric loads create areas of high pressure where lubricant can be squeezed out of the slewing bearing. Ensure lubrication intervals are adequate for the operating conditions. In harsh environments with shock loads, shorten lubrication intervals.

How LDB Bearing Addresses Eccentric Load Challenges

LDB Bearing designs and manufactures slewing bearings for heavy machinery applications where eccentric loads are a primary design consideration. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.

LDB’s engineering approach:

  • Application-specific design: Load calculations based on actual operating conditions, including dynamic eccentric loads and tilting moments
  • Material selection: Verified 42CrMo and 50Mn forged alloy steel with full traceability for demanding eccentric load applications
  • Heat treatment: In-house induction hardening with documented hardness records and proper hardened layer depth
  • Precision manufacturing: CNC machining and gear cutting meeting international standards, with dimensional records retained for every bearing
  • Quality certification: ISO 9001-certified manufacturing with documented inspection reports

Serving 73 countries with over 500,000 units in service, LDB delivers the reliability that heavy machinery applications demand. Understanding how eccentric loads affect slewing bearing performance enables better selection, installation, and maintenance practices. LDB offers the technical expertise and quality assurance that equipment manufacturers and operators need for reliable, long-term operation.

Contact LDB Bearing today to discuss your heavy machinery slewing bearing requirements.

FAQs

1. What is an eccentric load on a slewing bearing?
An eccentric load occurs when the applied force does not pass through the center of the bearing, creating a tilting moment that causes uneven load distribution across the rolling elements. This is common in crane and excavator applications.

2. How does eccentric loading affect slewing bearing performance?
Eccentric loading creates uneven contact pressure across the raceway, causing some rolling elements to carry significantly higher loads than others. This accelerates wear, increases vibration, and can lead to edge spalling and premature failure.

3. What is the static safety factor for eccentric load applications?
For normal operation, static safety factors of 1.5–2.0 are typical. For applications with significant eccentric loads and shock conditions, factors of 2.5–4.0 are recommended to prevent raceway indentation.

4. How does vibration change under eccentric loading?
Under eccentric loading, vibration amplitude can increase significantly—with studies showing peak increases of up to 42.6%. The vibration response shows distinct patterns that can be used for fault diagnosis.

5. Can a standard slewing bearing handle eccentric loads?
Standard slewing bearings have limited ability to handle eccentric loads. Heavy machinery with significant eccentric loading requires bearings designed with higher safety factors, optimized raceway geometry, and appropriate material and heat treatment specifications.

Global Slewing Bearing Market Outlook 2026-2031

/in , /by

Understanding the Slewing Bearing Market

A slewing bearing is a large rotating component that supports heavy loads while enabling rotation between two structures. These bearings handle axial loads, radial loads, and tilting moments simultaneously. They are essential in construction equipment, wind turbines, solar trackers, and industrial machinery.

The global slewing bearing market is growing steadily. Multiple research reports confirm this trend, though estimates vary slightly by source. According to TechSci Research, the market was valued at approximately USD 5.14 billion in 2025 and is expected to reach USD 6.92 billion by 2031, growing at a CAGR of 5.0% during the forecast period of 2026 to 2031. Another report projects growth from USD 985 million in 2025 to USD 1,441 million by 2031, at a CAGR of 6.5% over the 2026-2031 period. A Chinese language report estimates the 2025 global market at 49.9 billion yuan (approximately USD 7 billion), with a forecast CAGR of 5.45% through 2032.

These figures show a consistent picture: the slewing bearing market will continue expanding through 2031, driven by renewable energy, infrastructure investment, and industrial automation.

Key Drivers of Slewing Bearing Market Growth

Renewable Energy Expansion

Wind and solar energy projects represent the largest growth opportunity for the slewing bearing market. Wind turbines require both pitch bearings (for blade angle adjustment) and yaw bearings (for nacelle orientation). As turbines grow larger, these slewing bearings must handle higher loads and operate reliably for decades.

The shift toward offshore wind is accelerating this demand. Offshore wind accounted for about 1.8% of total renewable capacity and is growing rapidly. Offshore installations require specialized slewing bearings with higher load capacity and better corrosion resistance. Double-row tapered roller bearings and three-row roller slewing rings are increasingly specified for these demanding applications.

Solar trackers also rely on slewing bearings. These systems rotate photovoltaic panels to follow the sun, increasing energy yield by 20-35% compared to fixed installations. Utility-scale solar farms require hundreds or thousands of tracking units, each containing a slewing bearing or slew drive.

Infrastructure and Construction Investment

Global urbanization continues to drive demand for construction equipment. Every excavator, crane, and aerial work platform depends on a slewing ring to rotate the upper structure relative to the undercarriage. Demand for these slewing bearings tracks closely with infrastructure spending.

The trend toward modular construction and heavier lifts is pushing demand for high-load-capacity slewing bearings. Mobile, tower, and crawler cranes increasingly require larger diameter slewing rings with greater tilting moment capacity.

Industrial Automation and Emerging Applications

Beyond traditional heavy machinery, slewing bearings are finding new applications. Industrial robots use precision slewing bearings for joint rotation. Medical equipment like CT scanners and MRI machines require slewing bearings with zero clearance, low noise, and extremely high rotational precision. While smaller in physical size, the medical segment offers high margins for manufacturers.

Regional Analysis of the Slewing Bearing Market

Asia Pacific: The Dominant Region

Asia Pacific leads the global slewing bearing market. Major manufacturing industries in China and India drive demand. China alone represents a significant portion of global consumption, with the Chinese market estimated at 19.1 billion yuan (approximately USD 2.7 billion) in 2025.

The region’s dominance comes from its position as both a manufacturing hub and a major consumer of construction equipment. China’s Belt and Road Initiative and India’s infrastructure development programs continue to generate demand for construction machinery and the slewing bearings they require.

North America: Renewable Energy Growth

North America shows significant growth potential for slewing bearings, particularly from the expanding renewable energy sector. The United States leads the region, with wind farm development and solar installations driving demand for slewing bearings.

Europe: Strong Growth in Wind Energy

Europe is projected to experience steady growth in slewing bearing demand, driven by construction machinery demand and ambitious renewable energy targets. The EU’s Green Deal and REPowerEU initiatives accelerate wind energy adoption, increasing demand for pitch and yaw bearings.

Other Regions: Infrastructure Development

The Middle East and Africa show moderate growth in slewing bearing demand due to infrastructure development initiatives. Latin America is expected to witness a surge in demand fueled by growing construction activities. Each region has varying growth opportunities based on industrial development and infrastructure projects.

Product Segments in the Slewing Bearing Market

By Bearing Type

The slewing bearing market segments by rolling element type: ball bearings and roller bearings. Roller bearings, particularly three-row and crossed roller designs, are gaining share due to higher load capacity and better durability for demanding applications.

Crossed roller slewing ring bearings represent the fastest growing segment. These slewing bearings offer superior rigidity and precision, making them ideal for wind turbines, robotics, and precision equipment.

By Gear Configuration

Slewing bearings come in internal gear, external gear, and gearless configurations. The choice depends on the application’s drive system and space constraints. External gears are common in solar trackers and construction equipment, while internal gears are often used in compact designs.

By Application

Wind and solar energy is the largest and fastest-growing application segment for slewing bearings. Industrial machinery, including construction and mining equipment, remains the volume leader. Medical equipment, aerospace and defense, and oil and gas represent specialized segments with specific slewing bearing requirements.

Challenges Facing the Slewing Bearing Market

Raw Material Price Volatility

Steel price fluctuations create significant challenges for slewing bearing manufacturers. High-grade steel, typically grades like 42CrMo or 50Mn, is the primary input material. The quality of steel directly impacts the fatigue life of the slewing bearing raceway.

When steel prices fluctuate unpredictably, producers struggle to estimate production costs. This volatility often leads to eroded profit margins or forced cost increases for customers. According to the World Steel Association, global steel demand was projected to decline by 0.9% in 2024, reversing earlier forecasts of recovery. Such shifts create a precarious planning environment for slewing bearing manufacturers.

Energy Costs

European slewing bearing manufacturers face particular challenges from energy cost disadvantages compared to Asian competitors. This cost pressure affects pricing and competitiveness in global markets.

Certification Requirements

Certification bodies like DNV or ABS are standard requirements for marine and offshore applications of slewing bearings. These certifications create barriers to entry for lower-tier manufacturers, but they also add cost and complexity to the supply chain.

Technology Trends in Slewing Bearings

Smart Bearings and IoT Integration

The integration of Internet of Things (IoT) sensors for predictive maintenance is transforming the slewing bearing industry. Embedded sensor arrays can monitor axial and radial wear, grease condition, and structural stress in real-time.

According to Modern Construction News, digital bearing clearance monitoring systems can reduce equipment downtime by up to 75% by eliminating the need for physical inspections in difficult-to-access machinery zones. This capability is particularly valuable for offshore wind farms where slewing bearing maintenance access is challenging.

Advanced Materials

Hybrid ceramic and steel configurations are evolving to meet both performance requirements and decarbonization targets. Ceramic rolling elements provide electrical insulation and speed capabilities. Manufacturers are also innovating metallurgical composition to reduce environmental impact.

Low-carbon steel produced via electric arc furnaces is gaining adoption. SKF reported that using renewable-energy-manufactured GreenSteel Climate+ reduced carbon dioxide emissions from bearing components by 40% compared to standard steel production methods.

Remanufacturing and Circular Economy

Major slewing bearing manufacturers are developing remanufacturing programs to support circular economy goals. Extending the life of large-diameter slewing bearings through reconditioning reduces waste and lowers total cost of ownership for equipment operators.

Competitive Landscape of the Slewing Bearing Market

The slewing bearing market features a mix of established Western technology leaders and rapidly expanding Chinese manufacturers.

Global Tier-1 Leaders

thyssenkrupp rothe erde leads in high-end slewing bearing applications, particularly wind and tunnel boring sectors. Their reputation is built on material science and large-diameter manufacturing capacity.

Schaeffler AG invests in “Industry 4.0” features, integrating sensors for real-time slewing bearing condition monitoring. SKF Group focuses on total lifecycle management, offering slewing bearings, lubrication systems, and monitoring services.

The Timken Company is renowned for tapered roller bearing technology. JTEKT Corporation (Koyo brand) is known for high precision and reliability.

Key Players in the Market

Other significant players include NSK Ltd., La Leonessa, and multiple Chinese manufacturers like Zhejiang Tianma Bearing Group, WaFangdian Rolling Bearing, and Xuzhou Helin Slewing Bearing.

The market concentration shows the top five slewing bearing manufacturers accounting for approximately 33.8% of the market share, with competition intensifying as Chinese manufacturers improve quality and expand capacity.

How LDB Bearing Positions in the Growing Slewing Bearing Market

LDB Bearing (Luoyang Longda Bearing Co., Ltd.) serves this expanding global slewing bearing market with a comprehensive product portfolio. The company manufactures single-row four-point contact ball bearings, double-row ball bearings, crossed roller bearings, and three-row roller bearings. Sizes range from small diameters to over 2,000mm.

LDB’s market strengths:

  • Quality commitment: ISO 9001-certified manufacturing with documented inspection reports and full material traceability
  • Material integrity: Verified 42CrMo and 50Mn forged alloy steel with induction-hardened raceways achieving 55–62 HRC
  • Comprehensive product range: All major slewing bearing types with internal, external, or gearless configurations
  • Global reach: Serving 73 countries with over 500,000 units in service
  • Engineering support: Application engineering for load calculations, finite element analysis, and custom slewing bearing designs

As the slewing bearing market grows toward USD 6.9 billion by 2031, LDB’s combination of quality manufacturing, engineering expertise, and global logistics positions the company to serve customers across renewable energy, construction, and emerging industrial applications.

Contact LDB Bearing today to discuss your slewing bearing requirements.

FAQs

1. What is the projected growth rate of the global slewing bearing market?
The global slewing bearing market is expected to grow at a CAGR of 5.0% to 6.5% from 2026 to 2031, reaching USD 6.9 to 14.4 billion depending on the report source.

2. Which region dominates the slewing bearing market?
Asia Pacific dominates the slewing bearing market, driven by major manufacturing industries in China and India. China alone represents a significant portion of global consumption.

3. What are the main applications driving slewing bearing demand?
Wind and solar energy is the fastest-growing application segment for slewing bearings. Construction equipment remains the volume leader. Medical equipment, robotics, and other emerging applications are creating new demand.

4. How does the offshore wind market affect slewing bearing demand?
Offshore wind requires specialized slewing bearings with higher load capacity and corrosion resistance. Double-row tapered roller bearings and three-row roller slewing rings are increasingly specified for offshore installations.

5. What are the key challenges in the slewing bearing market?
Steel price volatility creates uncertainty for slewing bearing manufacturers. European producers face energy cost disadvantages. Certification requirements add complexity for marine and offshore applications.

Wind Turbine Slewing Bearing Failure Prediction and Monitoring

/in , /by

What Is a Wind Turbine Slewing Bearing?

A wind turbine slewing bearing is a large rotating component that connects major parts of the turbine. Two types are critical: pitch bearings sit between the hub and each blade, adjusting blade angles to capture the best wind energy. Yaw bearings sit between the tower and the nacelle, turning the turbine to face the wind. These bearings carry huge loads and are hard to reach, making their reliability essential for turbine performance.

Why Wind Turbine Slewing Bearings Fail Early

Wind turbine slewing bearings fail for many reasons. Pitch bearings face fluctuating loads and often move in small angles or stay still for long periods. This duty cycle creates unusual fatigue patterns not seen in other applications.

When a slewing bearing fails, the results can be serious. The turbine may lose pitch control, produce less energy, or experience unstable currents. The failure modes vary widely. Raceway spalling, gear tooth wear, seal damage, bolt loosening, and brinelling all occur. Because the failure mechanisms differ so much, engineers need reliable ways to monitor bearing health. However, the wind power industry lacks standard methods for slewing bearing failure prediction and diagnosis.

Lubrication creates another major challenge for wind turbine slewing bearings. Pitch bearings operate at low speeds with oscillating motion. These conditions make it hard to maintain a good lubricant film. Grease can dry out over time, allowing moisture to enter the bearing. In one fatigue test, bearing 0411 lost much of its grease because the operator used low-viscosity grease. This mistake accelerated damage and shortened the bearing’s life.

How Vibration Monitoring Detects Slewing Bearing Problems Early

Vibration monitoring is the most common method for finding early damage in rotating machinery. For wind turbine slewing bearings, it helps catch developing faults before they cause breakdowns. Sensors mounted on the bearing outer ring or housing pick up vibration signals during normal operation.

Researchers have built special test platforms to study pitch bearing faults. One platform uses a scaled slewing bearing design that mimics real operating conditions. It collects vibration and sound data for 11 different fault types under three load conditions and two speeds. The data follows ISO standards and covers raceway damage, roller damage, and cage fractures. This dataset helps develop machine learning and deep learning methods for slewing bearing fault diagnosis.

But vibration monitoring faces real challenges with wind turbine slewing bearings. These bearings are large, rotate slowly, and carry heavy loads. The vibration signals have low energy and can get lost in background noise. When wind conditions vary constantly, online data contains large uncertainties. These factors make early detection of slewing bearing problems difficult.

Using Temperature and Multiple Sensors for Better Slewing Bearing Monitoring

Single sensors often lack the reliability needed for wind turbine slewing bearing monitoring. Temperature monitoring works well alongside vibration analysis. Rising temperatures often signal developing damage, lubricant breakdown, or contamination in the slewing bearing.

Multi-sensor fusion represents a clear trend in current slewing bearing research. Combining vibration, temperature, and load data creates more complete health assessments. Many studies look at each signal separately, ignoring how different signals interact. However, research shows that considering signal coupling improves slewing bearing prediction accuracy.

Practical monitoring strategies combine various sensors for comprehensive slewing bearing condition assessment. Data fusion algorithms can create more reliable health indicators. For example, ensemble empirical mode decomposition combined with singular value decomposition can denoise raw signals effectively. Manifold learning-based fusion algorithms then extract degradation indicators from the cleaned data for slewing bearing analysis.

Why Lubricant Analysis Matters for Slewing Bearing Health

Lubricant condition tells you things that vibration and temperature cannot reveal about a slewing bearing. Wear particles in the grease indicate progressive surface damage. Lubricant degradation signals that the grease can no longer protect the bearing properly.

Recent research focuses on online monitoring of lubrication film thickness in slewing bearings using ultrasonic methods. This non-destructive technique offers advantages over electrical and optical approaches that require invasive installation. However, the ultrasonic method has its own challenges. The roller’s curvature creates signal overlap, making it hard to extract the contact signal accurately. Current methods for selecting the contact signal rely mostly on experience and lack theoretical backing for slewing bearing applications.

Wind turbine pitch bearings operate in harsh environments with wide temperature swings. These conditions accelerate grease degradation in slewing bearings. Regular lubricant sampling is essential. Testing should check for moisture, particles, and additive depletion as part of a complete slewing bearing maintenance program.

How Bolt Torque Monitoring Prevents Slewing Bearing Failure

Bolt loosening ranks among the most common causes of premature slewing bearing failure. Wind turbines have critical bolted joints at the tower, bearing, hub, and blade connections. These joints face complex cyclic loads throughout their 20-year service life.

Loss of clamp load and fatigue failure are common problems for bolted joints under dynamic loads. These issues often stem from incorrect bolt tension during installation. The traditional torque/tension methods used for periodic fastener checks also contribute to inaccuracies that affect slewing bearing reliability.

Load-monitoring fasteners offer a better solution for slewing bearing applications. They maintain fastener tension within plus or minus 5% of design specifications. This precision improves equipment reliability and safety while reducing maintenance costs. A complete 100% tension verification using these fasteners takes less time than a typical 10% torque check using standard fasteners.

Sensor-based bolt monitoring systems are now available for slewing bearings. One device uses washer-type force sensors to measure bolt load in pitch bearings. The system includes data acquisition, storage, and wireless transmission components. It collects real-time force signals and provides load spectrum data under different operating conditions. This data supports life prediction for bolts and enables remote slewing bearing condition analysis.

Predicting Remaining Slewing Bearing Life with Data Models

Remaining useful life (RUL) prediction represents the ultimate goal of slewing bearing condition monitoring. Instead of just detecting current faults, it forecasts when failure will occur. This capability enables condition-based maintenance planning that minimizes downtime and optimizes replacement schedules for slewing bearings.

Data-driven approaches offer various techniques for slewing bearing RUL estimation. Time-domain features extracted from raw vibration signals undergo screening based on monotonicity, predictability, and robustness. Partial least squares methods reduce dimensionality and enhance sensitivity to key data. Predictive models using exponential functions with strong tracking filters can adapt to different slewing bearing degradation stages and track sudden changes.

Bayesian methods take a different approach to slewing bearing life prediction. They update model parameters to obtain an accurate failure curve. The prediction of RUL comes with a posterior probability, providing confidence intervals for decision-making. This approach proves valuable when operating conditions vary and online data contains large uncertainties for slewing bearing monitoring.

Hybrid approaches combine multiple techniques for better slewing bearing prediction results. Recent work has developed methods that combine symbolic regression with model structure adaptation. Symbolic regression produces explicit analytical expressions rather than “black box” models. These expressions can be combined with coupling terms to improve fault tolerance and prediction accuracy for slewing bearings.

Current Inspection Standards for Wind Turbine Slewing Bearing

The Chinese standard T/CRES0032-2025 provides detailed specifications for operating and maintaining grease-lubricated wind turbine bearings. Regular maintenance includes monitoring slewing bearing vibration, bolt pre-tightening status, gear tooth condition, seal condition, and lubricant quality. The standard recommends periodic lubricant sampling to test for moisture, particles, and elemental content. It also recommends real-time online monitoring where feasible for slewing bearings.

Displacement-based monitoring offers an alternative approach for slewing bearing inspection. This method uses displacement sensors to measure axial movement between the inner and outer rings of a pitch bearing. The process involves rotating the ring over an angular range and recording both angular position and measured distance. Any variation in distance indicates non-uniform rotation, which may signal slewing bearing damage. Operators can perform this measurement while the main rotor sits stationary or during normal operation.

Accelerated run-to-failed experiments provide critical data for developing and validating slewing bearing prediction methods. Life-cycle fatigue tests on slewing bearings generate valuable degradation data. Adaptive symbolic regression applied to prediction models helps improve robustness of initial models for slewing bearing analysis.

How LDB Supports Wind Turbine Slewing Bearing Monitoring

LDB Bearing designs and manufactures high-precision slewing bearings for wind turbine pitch and yaw applications. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.

Quality and precision form the foundation of LDB’s slewing bearing approach. Manufacturing capabilities meet the precision grades that wind turbine applications require. Dimensional records stay on file for every slewing bearing sold. ISO 9001-certified manufacturing ensures consistent quality, with documented inspection reports and full material traceability.

LDB provides application engineering support for slewing bearing load calculations, finite element analysis, and custom designs. The engineering team works with wind turbine manufacturers to optimize slewing bearing specifications for specific turbine designs and operating conditions. This collaboration helps maximize reliability and service life.

Understanding slewing bearing failure prediction is part of LDB’s expertise in design, materials, and manufacturing. By understanding failure mechanisms and working with monitoring technology providers, LDB helps wind turbine operators achieve maximum reliability and minimum downtime.

Contact LDB Bearing today to discuss your wind turbine slewing bearing requirements.

FAQs

1. What are the main failure modes of wind turbine slewing bearings?
The main failure modes include raceway spalling from rolling contact fatigue, gear tooth wear, seal degradation that allows contamination, bolt loosening, and brinelling from overload or shock loads.

2. Why is vibration monitoring challenging for wind turbine slewing bearings?
Large bearing size, low rotational speeds, and heavy loads produce vibration signals with low energy that get lost in background noise. Highly variable wind conditions also complicate analysis.

3. What is multi-signal fusion in slewing bearing monitoring?
Multi-signal fusion combines data from vibration, temperature, acoustic emission, and load sensors to create more reliable health indicators for slewing bearings. Research shows that considering signal coupling improves prediction accuracy.

4. How can operators detect bolt loosening in wind turbine slewing bearings?
Load-monitoring fasteners allow direct clamp load measurement. Sensor-based monitoring systems use washer-type force sensors and wireless data transmission for remote bolt tension monitoring in slewing bearings.

5. What is remaining useful life (RUL) prediction for slewing bearings?
RUL prediction forecasts when a slewing bearing will fail based on condition monitoring data and degradation models. This enables condition-based maintenance planning that minimizes downtime and optimizes replacement schedules.

How LDB Customizes Slewing Bearings for Emerging Industries and Applications

/in , /by

What Is a Slewing Bearing?

A slewing bearing—also known as a slewing ring or turntable bearing—is a large-diameter rolling-element bearing designed to support heavy loads while enabling rotational movement between two structures. Unlike standard bearings that handle primarily radial or axial loads, slewing bearings are engineered to simultaneously manage axial loads (vertical forces), radial loads (horizontal forces), and tilting moments (overturning forces). This unique capability makes them essential components in construction equipment, wind turbines, solar trackers, and industrial automation systems.

Core components: A slewing bearing consists of the inner ring and outer ring, rolling elements (steel balls or cylindrical rollers), a cage or spacer to maintain spacing between rolling elements, seals to protect the raceway from contaminants, and mounting holes for secure installation. Many slewing bearings also include integral gear teeth—either internal or external—to engage with drive pinions for powered rotation.

The customization imperative: While standard slewing bearing designs serve many applications, emerging industries demand specialized solutions. Medical equipment requires ultra-low noise and zero-clearance operation. AGVs demand compact, lightweight designs with high precision. Solar trackers require corrosion resistance and self-locking capabilities. This is where customization transforms a standard component into an application-specific solution.

Why Emerging Industries Need Custom Slewing Bearings

The global slewing bearing market is projected to grow from USD 5.14 billion in 2025 to USD 6.92 billion by 2031, at a CAGR of 5.0% . Asia Pacific leads this growth, combining the world’s largest construction and mining equipment base with massive renewable energy installations . However, growth alone does not tell the full story—the nature of demand is shifting.

New applications demand new specifications: Traditional construction machinery still dominates volume, but emerging applications in medical equipment, AGVs, renewable energy, and industrial automation require slewing bearings with precision, compactness, and reliability far beyond standard designs. For example, medical CT scanners require zero clearance and extremely low noise . Vehicle radar systems for autonomous driving require slewing bearings that can maintain precision under continuous oscillation and environmental exposure .

The customization advantage: Standard catalog bearings cannot meet these diverse requirements. Customization enables optimization of load capacity, size, precision, sealing, lubrication, and materials for specific applications. LDB’s engineering team works directly with customers to develop tailored solutions, utilizing advanced FEA analysis to validate design parameters .

Medical Equipment: Precision and Reliability at the Forefront

The medical equipment sector demands slewing bearings that combine high precision, ultra-low noise, and long-term reliability. CT scanners, gamma knives, and MRI machines require rotational components that operate without vibration, maintain accuracy over millions of cycles, and function in sterile environments .

Application requirements: Medical slewing bearings typically require:

  • Runout below 0.05mm for imaging precision
  • Ultra-low starting torque for smooth motion
  • Long service life with minimal maintenance
  • Compatibility with sterile environments and disinfection procedures

LDB’s medical capabilities: LDB has developed high-precision, low-noise, long-life slewing bearings specifically for medical equipment. These products are applied in gamma knives, CT scanners, and MRI machines . The company’s manufacturing capabilities meet P5 and P4 precision grades, with documented runout measurements ensuring consistent quality .

Customization approach: Medical equipment manufacturers require application-specific solutions. LDB engineers work directly with medical device designers to optimize bearing parameters—load capacity, rotational precision, lubrication type, and sealing configuration—for each specific application .

AGV Steering Wheels: Compact Precision for Automated Logistics

Automated guided vehicles (AGVs) are transforming material handling and logistics. These vehicles require compact, high-precision slewing bearings for steering wheels that enable 360-degree rotation while supporting the vehicle’s weight and cargo. AGV applications demand bearings that are lightweight, precise, and reliable over extended operating cycles .

Application requirements: AGV slewing bearings typically need:

  • Compact design to fit limited space
  • High precision for accurate navigation
  • Low friction for energy efficiency
  • Durability for continuous operation

LDB’s AGV capabilities: LDB’s products for AGVs include specialized steering wheel slewing bearings and integrated solutions. The company’s flanged slewing bearings are particularly suited for AGV applications, offering bolt-on mounting that simplifies installation and reduces structural footprint . With outer diameters from 200mm to 1500mm, these bearings provide the compactness AGV designs require while maintaining load capacity .

Customization for AGV applications: AGV manufacturers require bearings optimized for specific vehicle designs. LDB provides custom drilling patterns, gear configurations, and compact designs that integrate seamlessly with AGV steering systems .

Solar Energy and Renewable Applications

The renewable energy sector, particularly solar and wind power, represents one of the fastest-growing markets for slewing bearings. Solar tracking systems require precision rotation to follow the sun, while wind turbines demand large-diameter bearings for pitch and yaw control .

Application requirements: Solar tracking slewing bearings require:

  • Corrosion resistance for outdoor exposure
  • Self-locking capability to maintain position
  • Low maintenance for remote installations
  • Compact design for tracker integration

LDB’s renewable energy capabilities: LDB manufactures slewing bearings for photovoltaic and solar thermal power generation equipment. These bearings feature compact design, high reliability, and customization for specific tracking system requirements . The company’s products have demonstrated effectiveness in extreme environments, including -45°C cold-resistant applications .

Aerial Work Platforms: Safety-Critical Customization

Aerial work platforms (AWPs) represent a safety-critical application where slewing bearing reliability is non-negotiable. These platforms require components that can handle dynamic loads, operate in harsh construction environments, and maintain safety margins over extended service life .

Application requirements: AWP slewing bearings require:

  • High load capacity for dynamic and static loads
  • Robust sealing against dust and moisture
  • Long-term reliability for safety applications
  • Customized solutions for specific platform designs

LDB’s AWP capabilities: LDB offers fully customized slewing bearing solutions for the AWP industry, engineering hardware from the ground up based on specific project load spectrums and environmental conditions. The company utilizes advanced FEA analysis to validate preload settings and gear strength, integrating advanced monitoring systems, customized wide-temperature lubrication protocols, and severe-duty sealing systems .

Customization for safety: LDB’s engineering team works directly with AWP designers to ensure proper gear profiles, material selection, and heat treatment for maximum torque capacity and fatigue life. The company’s use of specialized carbon steel alloys (such as 42CrMo) with precision heat treatment ensures structural integrity under dynamic forces .

How LDB Approaches Customization

LDB’s customization process is built on engineering collaboration and technical depth. The company’s approach includes:

Application analysis: LDB engineers analyze the specific requirements of each application—load profile, operating environment, precision needs, and space constraints.

Design optimization: Using advanced FEA analysis, the engineering team optimizes bearing geometry, material selection, heat treatment, and sealing configuration .

Precision manufacturing: LDB’s manufacturing capabilities include CNC machining, induction hardening, and precision grinding, with dimensional records retained for every bearing sold .

Quality assurance: All products are manufactured under ISO9001:2015 and TUV-certified quality management systems, with 100% inspection before shipment .

Global support: With export experience spanning 73 countries, LDB provides localized support through agents in India, Iran, Turkey, Russia, and other regions .

Conclusion

Custom slewing bearings are enabling innovation across emerging industries—from medical equipment and AGVs to renewable energy and aerial work platforms. LDB Bearing’s engineering depth, manufacturing capabilities, and commitment to customization make it a trusted partner for applications where standard solutions are insufficient. Whether your application demands extreme precision, compact design, or reliability under harsh conditions, LDB provides the expertise and quality assurance needed for success.

Contact LDB Bearing today to discuss your custom slewing bearing requirements.

FAQs

1. What industries benefit most from custom slewing bearings?
Medical equipment, AGVs, solar tracking systems, wind turbines, aerial work platforms, and industrial automation all benefit from custom slewing bearings. Each application has unique requirements for precision, size, load capacity, and environmental protection.

2. How does LDB customize slewing bearings for specific applications?
LDB analyzes the application’s load profile, operating environment, and space constraints. Using FEA analysis and engineering expertise, the company optimizes bearing geometry, material selection, heat treatment, and sealing configuration to meet specific requirements.

3. What precision grades does LDB offer for medical applications?
LDB manufactures slewing bearings meeting P5 and P4 precision grades, with documented runout measurements. Medical applications typically require runout below 0.05mm and ultra-low starting torque.

4. Can LDB provide slewing bearings for extreme temperature environments?
Yes. LDB has developed extreme cold-resistant slewing bearings for -45°C applications, with proven reliability in demanding environments such as Russian mining and infrastructure projects.

5. What is the typical lead time for custom slewing bearings?
Lead times vary based on design complexity and quantity. LDB’s engineering team works closely with customers to ensure timely delivery, with dimensional records retained for every bearing to enable rapid reproduction without re-measurement.

Three-Row Roller Slewing Bearings: Design and Static Load Selection

/in , /by

What Is a Three-Row Roller Slewing Bearing?

A three-row roller slewing bearing is a large-diameter rolling-element bearing that uses three independent rows of cylindrical rollers to support loads. Unlike single-row ball bearings or crossed roller designs, the three-row roller configuration dedicates separate roller rows to different load directions. The upper and lower rows of rollers handle axial loads and tilting moments, while the middle row handles radial loads. This separation of load paths allows each roller row to be optimized for its specific load type, resulting in the highest load capacity and rigidity among all slewing bearing designs.

Three-row roller slewing bearings are typically specified for the most demanding applications: large harbor cranes, tunnel boring machine (TBM) main bearings, heavy excavators, and large wind turbine pitch and yaw systems. While they represent the highest cost among slewing bearing types, they deliver unmatched performance in applications where failure is not an option. Understanding their design principles and static load-carrying capacity is essential for engineers, procurement professionals, and maintenance teams working with heavy machinery.

Structural Configuration of Three-Row Roller Slewing Bearings

The structural configuration of a three-row roller slewing bearing is defined by its three independent roller rows. Each row serves a distinct load-bearing function. The upper axial roller row is positioned near the top of the bearing cross-section. This row consists of cylindrical rollers oriented horizontally, with their axes parallel to the bearing’s radial direction. The rollers in this row handle axial loads in one direction (typically downward) and also contribute to tilting moment resistance.

The lower axial roller row is located near the bottom of the cross-section, with rollers oriented in the opposite direction to handle axial loads in the opposite direction (typically upward). Together, the upper and lower axial rows provide bidirectional axial load capacity and tilting moment resistance. The radial roller row sits between the upper and lower axial rows. These rollers are oriented vertically, with their axes parallel to the bearing’s axial direction, and handle radial loads perpendicular to the bearing axis. This row is independent of the axial rows.

Separating axial and radial load paths offers significant advantages. Load distribution is more uniform because there is no load interaction between directions. Each roller row can be optimized independently for its specific load type, with appropriate roller diameter, length, and material specifications. The contact area for each load type is maximized, increasing static and dynamic capacity.

However, this configuration also presents challenges. Manufacturing precision requirements are higher because three raceways must be machined within tight tolerances. Assembly is more complex due to multiple roller rows and the need to maintain proper roller spacing and preload. The overall cross-section height is larger than single-row designs, requiring more space in the equipment design. Despite these challenges, the load capacity and rigidity advantages make three-row roller bearings the preferred choice for the heaviest applications.

Load Types and Static Capacity of Three-Row Roller Slewing Bearings

Three-row roller slewing bearings must support three types of loads simultaneously in real-world applications. The first is axial load (Fa)—vertical forces acting parallel to the bearing axis. These loads come from the weight of the rotating structure, the payload, and any vertical acceleration forces. In a crane, the axial load includes the weight of the cab, boom, and lifted load. In a wind turbine, it includes the weight of the nacelle and rotor assembly.

The second is radial load (Fr)—horizontal forces acting perpendicular to the bearing axis. These loads come from wind pressure, side forces during operation, and any horizontal acceleration. In an excavator, radial loads occur during digging when the bucket encounters resistance from the ground. In a crane, wind loads on the boom structure create radial forces on the yaw bearing.

The third is tilting moment (M)—the overturning force created when loads act at a distance from the bearing center. This is often the dominant load type in slewing bearing applications. In a crane, the tilting moment is created by the lifted load at radius. In an excavator, the digging force at the bucket creates a tilting moment on the swing bearing. The tilting moment is calculated as load × distance from bearing center.

Static load-carrying capacity is defined as the maximum load a bearing can withstand without permanent plastic deformation of the raceway. For three-row roller slewing bearings, the static capacity is determined by the contact stress between the cylindrical rollers and the raceways. When the load exceeds the static capacity, indentations form on the raceway surface. These indentations create stress concentrations that accelerate wear and lead to premature failure. The static capacity is calculated based on the roller diameter, roller length, number of rollers, raceway hardness, and contact geometry.

The static capacity calculation follows the principles outlined in ISO 76, which defines the static load rating based on a maximum Hertz contact stress. For roller bearings, the static capacity is generally higher than for ball bearings of the same size due to the line contact geometry. This higher static capacity makes three-row roller bearings particularly suitable for applications with heavy loads or frequent shock loading.

The Acceptance Curve for Three-Row Roller Slewing Bearing Selection

The acceptance curve is a powerful visual tool for selecting three-row roller slewing bearings. This concept defines a two-dimensional curve in the (Fa, M) plane—with axial load on one axis and tilting moment on the other—that represents the ISO-defined static failure point for a given bearing. The acceptance curve provides a quick method to determine whether a specific load combination is within the bearing’s safe operating range.

If the calculated load point (Fa, M) falls below the acceptance curve, the bearing is safe for static loading. If the point falls above the curve, the bearing is at risk of plastic deformation, and a larger bearing or different configuration is required. The shape of the acceptance curve is determined by the bearing’s geometry, roller configuration, and material properties. It is typically generated by calculating the static capacity for a range of load combinations and plotting the results.

The acceptance curve method was originally developed by Aguirrebeitia et al. for four-point contact ball bearings and has been extended to three-row roller slewing bearings in recent research. This extension required accounting for the different behavior of roller rows under combined loading and the fact that axial rows may have different roller sizes when axial loads are predominantly unidirectional.

For design engineers, the acceptance curve offers several practical benefits. It enables rapid comparison of multiple bearing sizes without time-consuming detailed calculations. It also provides a clear visual indication of safety margins under static loads. Additionally, the method supports communication with suppliers by providing a standardized way to specify load requirements.

In practice, three-row roller slewing bearings often have different roller diameters in the upper and lower axial rows. This is because axial loads are often unidirectional—predominantly downward in most applications. When loads are primarily one direction, optimizing the loaded row for maximum capacity while reducing the size of the unloaded row can improve cost-effectiveness without sacrificing performance. The acceptance curve method can accommodate this asymmetry, providing accurate static capacity predictions for both symmetrical and asymmetrical configurations.

Factors Affecting Three-Row Roller Slewing Bearing Capacity

Several factors influence the static load-carrying capacity of three-row roller slewing bearings. Understanding these factors is essential for proper design and selection. The first factor is roller size and count. The static capacity is directly proportional to the roller diameter and length because larger rollers provide greater contact area. The number of rollers also affects capacity, as more rollers distribute the load over a larger total contact area. However, increasing roller count requires smaller roller spacing, which must be balanced against cage strength and assembly constraints.

The second factor is roller profile geometry. The shape of the roller-raceway contact area significantly affects stress distribution. Standard cylindrical rollers create rectangular contact areas with stress concentrations at the edges—a phenomenon known as edge loading. Advanced roller profiles—such as logarithmic curves—distribute stress more evenly across the roller length, reducing peak stress and increasing static capacity. These profiles also improve fatigue life by reducing the risk of edge-initiated spalling.

The third factor is raceway hardness and hardened layer depth. The raceway surface should achieve 55–62 HRC through induction hardening. The hardened layer depth should be 3–6mm to prevent indentation under high static loads. Shallower hardening reduces static capacity because the soft material beneath the hardened layer deforms under load, causing the hardened surface to sink and create indentations. Deeper hardening provides greater resistance to plastic deformation but increases manufacturing cost and complexity.

The fourth factor is bearing internal clearance. The clearance between the rolling elements and raceways affects how the bearing distributes loads. With positive clearance, the bearing has free play before load is applied, leading to uneven load distribution under load. With negative clearance (preload), the bearing has no free play and distributes loads more evenly, increasing static stiffness and load capacity. However, excessive preload increases friction and heat generation. The optimal clearance depends on the application’s load characteristics and operating conditions.

The fifth factor is structural deformation of the bearing rings and mounting structure. The static capacity calculations assume perfectly rigid, flat mounting surfaces. In reality, mounting structures deform under load, changing the internal load distribution within the bearing. Inadequate mounting structure stiffness reduces the effective static capacity because some rollers become overloaded while others carry less load than predicted. Designers must consider the mounting structure’s stiffness in the bearing selection process.

FEA and Computational Design of Three-Row Roller Slewing Bearings

Modern design of three-row roller slewing bearings increasingly relies on finite element analysis (FEA) and other computational methods. These tools enable more accurate prediction of static capacity and stress distribution than traditional analytical methods alone. FEA allows engineers to model the bearing as a complete system, including the rings, rollers, and mounting structure. The analysis can account for material properties, contact mechanics, and geometric nonlinearities that are difficult to capture with simplified analytical models.

A typical FEA approach involves building a three-dimensional model of the bearing and applying the expected loads. The contact between rollers and raceways is modeled using contact elements that simulate the pressure distribution across the contact area. The results show the stress distribution in the raceways and identify areas of high stress that could lead to plastic deformation. FEA also allows engineers to evaluate design modifications before building physical prototypes. For example, changes to the roller profile or bearing clearance can be modeled and the effect on stress distribution evaluated without costly and time-consuming physical testing. The 2025 study by Guerineau et al. presented a computational model for a three-row slewing bearing that combined theoretical formulations, FEA simulation, and experimental testing to characterize the nonlinear behavior of such bearings under static loads. This comprehensive approach enables designers to predict static performance with a high degree of confidence.

The combination of analytical calculations, FEA, and experimental testing provides the most reliable approach to static capacity prediction. Analytical calculations provide initial sizing guidance, FEA refines the design by accounting for structural deformation and complex contact mechanics, and experimental testing validates the design assumptions and identifies any unexpected failure modes. For critical applications where failure is not an option, this comprehensive approach is essential.

When to Choose a Three-Row Roller Slewing Bearing

Selecting the right slewing bearing type requires careful consideration of the application’s load profile and operating conditions. Three-row roller slewing bearings are the best choice for applications with extreme loads, high tilting moments, significant radial loads, or where failure cannot be tolerated. Three-row roller bearings handle static loads up to 25% higher than double-row ball bearings of similar size, and their line contact also provides 2-3 times better rigidity than ball designs.

Three-row roller bearings are recommended when the bearing raceway diameter is greater than 1800mm, making them standard for the largest harbor cranes and tunnel boring machines. They are also the standard choice for shield tunneling machines (TBM main bearings), where the bearing must support the entire cutterhead while enabling rotation. In port equipment, three-row roller bearings are used in ship-to-shore cranes and large container cranes for extreme load capacity. In wind energy, they are increasingly specified for 5MW+ wind turbine yaw and pitch bearings. In mining equipment, they are used in the largest excavators and draglines where shock loads are severe.

While three-row roller bearings have the highest unit cost among slewing bearing types, they often provide the lowest total cost of ownership in large-diameter heavy-load applications. The superior load capacity and rigidity reduce the risk of failure and the associated downtime. The longer service life reduces replacement frequency and maintenance costs. The improved stability under load enhances equipment productivity and safety.

How LDB Designs and Manufactures High-Performance Slewing Bearings

LDB Bearing (Luoyang Longda Bearing Co., Ltd.) designs and manufactures a comprehensive range of slewing bearings for heavy machinery, renewable energy, industrial automation, and specialized equipment applications. The company’s product portfolio includes single-row four-point contact ball bearings, double-row ball bearings, crossed roller bearings, and three-row roller bearings—with internal or external gear configurations and custom sizes to meet specific application requirements.

LDB’s design and manufacturing approach:

  • Comprehensive product range: LDB manufactures all major slewing bearing types—single-row ball, double-row ball, crossed roller, and three-row roller—in diameters from 108mm to over 2,000mm. Gear options include internal, external, and gearless configurations.
  • Material integrity: Verified 42CrMo and 50Mn forged alloy steel from Tier-1 mills with full traceability from raw material through final delivery. Documented material test certificates accompany every order.
  • Heat treatment: In-house CNC induction hardening with documented hardness records achieving 55–62 HRC on raceways and 50–60 HRC on gear teeth, with hardened layer depth of 3–6mm.
  • Precision manufacturing: CNC machining and gear cutting meeting international standards, with dimensional records retained for every bearing to enable rapid reproduction without re-measurement.
  • Quality assurance: ISO 9001-certified manufacturing with 100% ultrasonic testing (UT) and magnetic particle testing (MT) for every bearing before shipment. Documented inspection reports are provided with each order.
  • Engineering support: Application engineering for load calculations, finite element analysis, acceptance curve analysis, and custom design. The engineering team supports customers in selecting the right bearing type, size, and configuration for specific applications.

Serving 73 countries with over 500,000 units in service, LDB delivers the load capacity, precision, and reliability that heavy machinery applications demand. Whether your application requires the cost-effectiveness of single-row ball bearings, the precision of crossed roller designs, or the extreme load capacity of three-row roller bearings, LDB provides the technical expertise and quality assurance needed for reliable, long-term operation.

Contact LDB Bearing today to discuss your slewing bearing requirements.

FAQs

1. What is the main advantage of three-row roller slewing bearings over other types?
The main advantage is superior static load capacity and rigidity. Three-row roller bearings handle static loads up to 25% higher than double-row ball bearings of similar size and provide 2-3 times better rigidity due to line contact between rollers and raceways.

2. What is the D₀/d₀ ratio and why does it matter?
The D₀/d₀ ratio compares the roller diameter (D₀) to the roller length (d₀). A ratio of 80-100 is typical for three-row roller slewing bearings. This ratio affects the contact stress distribution and the balance between load capacity and service life.

3. How is the static load-carrying capacity calculated for three-row roller slewing bearings?
Static capacity is calculated using methods based on ISO 76, which defines the static load rating based on a maximum Hertz contact stress. For three-row roller bearings, the static capacity is determined by the contact stress between the cylindrical rollers and the raceways. The acceptance curve method provides a quick visual tool for capacity assessment.

4. What is the acceptance curve and how is it used in bearing selection?
The acceptance curve is a two-dimensional curve in the (Fa, M) plane that represents the ISO-defined static failure point for a given bearing. If the calculated load point falls below the curve, the bearing is safe for static loading. If it falls above the curve, a larger bearing or different configuration is required.

5. What factors should be considered when selecting a three-row roller slewing bearing?
Consider the axial load, radial load, tilting moment, operating speed and duty cycle, environmental conditions (temperature, contamination, corrosion), mounting structure stiffness, required service life, and maintenance access. The bearing raceway diameter and the application’s criticality should also inform the selection decision.

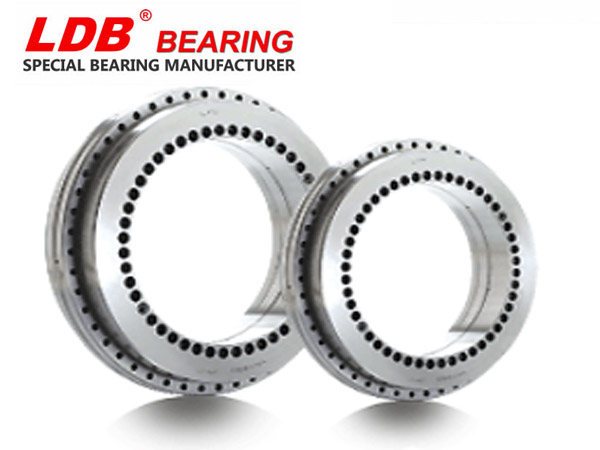

Slewing Bearings for Industrial Robots: Precision and Rigidity Requirements

/in , /by

What Is a Slewing Bearing?

A slewing bearing—also known as a slewing ring or turntable bearing—is a large-diameter rolling-element bearing designed to support heavy loads while enabling rotational movement between two structures. Unlike standard bearings that handle primarily radial or axial loads, slewing bearings are engineered to simultaneously manage axial loads, radial loads, and tilting moments.

In industrial robotics, slewing bearings serve as the critical rotational joint in robot bases, shoulders, elbows, and wrists. These bearings must deliver exceptional precision, high rigidity, and reliable performance under continuous, often oscillating motion while supporting the robot arm and its payload.

Core components: A slewing bearing consists of the inner ring and outer ring, rolling elements (steel balls or cylindrical rollers), a cage or spacer to maintain spacing, seals to protect the raceway from contaminants, and mounting holes for secure installation. Many robotic slewing bearings include integral gear teeth—internal or external—to engage with drive pinions for powered rotation.

Why Robotics Demands Specialized Slewing Bearings

Industrial robots operate under conditions that place unique demands on slewing bearings. Unlike construction equipment that rotates continuously, robot joints often execute small-angle oscillations with high frequency, sudden acceleration and deceleration, and positioning accuracy measured in fractions of a degree.

Precision requirements: Robotic applications typically require positioning repeatability of ±0.05mm or better. This translates to bearing runout below 0.05mm and angular positioning accuracy measured in fractions of a degree. Crossed roller bearings are often preferred for their ability to meet these stringent requirements .

Rigidity needs: A moving robot arm must place an object in an exact spot repeatedly. The bearing must resist deflection under load to maintain position accuracy. Crossed roller bearings provide the stiffness needed for short-stroke, high-acceleration moves .

Compact design: Space is always constrained in robot joints. Slewing bearings combine multiple load-bearing functions into one component, reducing joint length and diameter. Some crossed roller designs are available as small as 5.5mm high and 5mm wide .

Key Types of Slewing Bearings for Robotic Applications

Crossed Roller Bearings

Crossed roller bearings feature cylindrical rollers arranged at 90-degree angles to each other, with rollers alternating direction. This design enables a single-row bearing to handle axial loads from both directions, radial loads, and tilting moments simultaneously .

Advantages for robotics: Crossed roller bearings provide line contact between rollers and raceways, distributing loads over a larger area than balls. This results in higher rigidity—approximately 2-3 times that of comparable four-point contact bearings. The design achieves very good running accuracy and resistance to tipping moments .

Typical applications: Robot bases, shoulder joints, wrist joints, and precision positioning tables where stiffness is paramount.

Four-Point Contact Ball Bearings

Four-point contact ball bearings use a single row of balls with Gothic arch raceways, creating four contact points per ball. This design provides compact, cost-effective performance for moderate loads.

Advantages for robotics: Lower friction than crossed roller bearings due to point contact, enabling smoother motion and lower motor torque requirements. Single bearing replaces what would require two angular contact bearings, saving axial space. Ball bearings are less expensive than crossed roller bearings while performing smoother motion in a smaller, lighter package .

Typical applications: Lighter-duty robot joints, collaborative robots, and applications where cost and compactness are prioritized over maximum rigidity.

Precision and Rigidity Comparison

FactorCrossed Roller BearingsFour-Point Contact Ball Bearings
Load CapacityExcellent (line contact)Good (point contact)
RigidityVery high (2-3x higher)Moderate
FrictionHigherLower
PrecisionExcellentHigh
Space EfficiencyExcellentExcellent
CostHigherLower
Speed CapabilityLimitedHigher

Selection guidance: Crossed roller bearings excel in applications requiring maximum stiffness and positioning accuracy under heavy loads. Four-point contact ball bearings are preferred for higher-speed operations, continuous-duty applications, and where energy efficiency is critical.

How Load Capacity Affects Robot Performance

Robotic slewing bearings must handle three types of loads simultaneously: axial load (vertical force from arm weight and payload), radial load (horizontal side forces), and tilting moment (overturning forces from loads at a distance).

The tilting moment is particularly critical in robot applications. When a robot arm extends with a payload, the overturning force creates significant moment loads on the bearing. Crossed roller bearings, with their line contact, provide superior resistance to these tipping moments .

Load rating considerations: Bearings in heavy-duty six-axis robots can experience combined loads requiring static safety factors of 1.5–2.0 for normal operation. Under shock loads from tool changes or emergency stops, higher safety factors may be required.

Gear Configuration in Robotic Slewing Bearings

Internal vs. external gearing: For compact robot joint designs with space constraints, internal gearing is often preferred as it protects gear teeth from contamination and reduces overall diameter . External gearing offers easier pinion access for inspection and maintenance.

Backlash requirements: Robotic applications require minimal backlash to maintain positioning accuracy. Gear teeth should be surface-hardened to 50–60 HRC to resist wear and maintain precision over extended operating cycles.

Material and Heat Treatment for Robotic Slewing Bearings

Raceway hardness: For both bearing types, raceway surfaces should achieve 55–62 HRC through induction hardening. This provides wear resistance while maintaining core toughness to absorb impact loads.

Hardened layer depth: Industry standards specify 3mm–6mm depth for optimal performance. Proper hardening prevents raceway indentation and spalling under cyclic loading.

Gear tooth hardening: If integral gearing is specified, teeth must be induction-hardened to 50–60 HRC with hardening extending from tooth root to tip for full durability.

Sealing and Lubrication for Robotic Environments

Contamination protection: Factory environments expose robot joints to dust, coolant mist, and debris. Seals must protect the raceway while maintaining smooth rotation. Multi-lip or labyrinth seals offer superior protection.

Lubrication demands: Crossed roller bearings run warmer than ball bearings due to higher contact area. This accelerates lubrication degradation, making lubricant selection critical . For cleanroom applications, specialized lubricants that minimize particle generation are required.

Emerging Trends in Robotic Slewing Bearings

Lubrication-free designs: Some manufacturers offer bearings with polymer sliding elements that operate without grease, eliminating lubrication requirements in cleanroom and medical applications.

Smart bearings: Integration of sensors for position feedback and condition monitoring enables predictive maintenance and real-time performance optimization.

Higher precision grades: As robotics advances toward micro-motion control and sub-millimeter positioning, bearing precision grades continue to tighten. P4 and P2 grades are increasingly common in high-end robotic applications.

How LDB Bearing Supports Robotic Applications

LDB Bearing supplies precision slewing bearings for industrial robots, including four-point contact ball bearings and crossed roller bearings. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.

LDB’s robotic bearing capabilities:

  • Crossed roller bearings: For maximum rigidity and precision in robot bases, shoulders, and wrists
  • Four-point contact ball bearings: For compact, cost-effective solutions in lighter-duty applications
  • Precision grades: Meeting P5, P4, and P2 standards with documented runout measurements
  • Gear options: Internal, external, or gearless configurations
  • Application engineering: Support for load calculations, finite element analysis, and custom design
  • Quality certification: ISO 9001-certified manufacturing with documented inspection reports

Serving 73 countries with over 500,000 units in service, LDB delivers the precision and reliability that robotic applications demand. Whether you need the exceptional rigidity of crossed roller bearings or the compact efficiency of four-point contact designs, LDB provides the technical expertise and quality assurance that robot manufacturers require for reliable, long-term operation.

Contact LDB Bearing today to discuss your robotic slewing bearing requirements.

FAQs

1. Which bearing type is better for robotic joints?
Crossed roller bearings offer superior rigidity and precision, ideal for heavy-duty robots. Four-point contact ball bearings provide lower friction and cost, suitable for lighter applications. The choice depends on your specific load, precision, and speed requirements.

2. Why are crossed roller bearings more rigid than four-point contact bearings?
Crossed roller bearings feature line contact between cylindrical rollers and raceways, distributing loads over a larger area. Four-point contact ball bearings use point contact. The larger contact area of line contact reduces elastic deflection under load, resulting in higher rigidity .

3. What precision grade is typically required for robotic slewing bearings?
Most robotic applications require P5 or better. Precision-critical applications like semiconductor handling and surgical robots may require P4 or P2 grades.

4. How do I select a slewing bearing for a robot application?
Evaluate your application’s load profile (axial, radial, moment), speed requirements, positioning accuracy needs, and environmental conditions. Match these to bearing type, size, precision grade, and sealing requirements. Consult the manufacturer’s engineering team for application-specific guidance.

5. Can four-point contact ball bearings handle moment loads?
Yes, four-point contact ball bearings can handle tilting moments. However, crossed roller bearings provide significantly higher moment capacity and rigidity, making them preferred for applications with heavy overturning forces.

How Slewing Bearings Perform Under Eccentric Loads in Heavy Machinery

/in , /by

What Is a Slewing Bearing?

A slewing bearing—also known as a slewing ring or turntable bearing—is a large-diameter rolling-element bearing that supports heavy loads while enabling rotational movement between two structures. Unlike standard bearings that handle primarily radial or axial loads, slewing bearings are engineered to simultaneously manage axial loads (vertical forces), radial loads (horizontal forces), and tilting moments (overturning forces). In heavy machinery such as rotary cranes, excavators, and tunnel boring machines, the slewing bearing serves as the critical rotational joint between the upper structure and the undercarriage.

Core components: A slewing bearing consists of the inner ring and outer ring, rolling elements (steel balls or cylindrical rollers), a cage or spacer to maintain spacing between rolling elements, seals to protect the raceway from contaminants, and mounting holes for secure installation. Many heavy machinery slewing bearings also include integral gear teeth—either internal or external—to engage with drive pinions for powered rotation.

What makes eccentric loads challenging: Unlike static or symmetrical loading conditions, eccentric loads create uneven force distribution across the slewing bearing raceway. This leads to localized overloading, increased contact stresses, and accelerated wear in specific zones.

What Are Eccentric Loads and Why Do They Matter for Slewing Bearings?

In practical operation, slewing bearings in rotary cranes, excavators, and other heavy equipment rarely experience perfectly centered, symmetrical loads. The boom extends outward, the load is lifted at a radius, and dynamic forces from wind, acceleration, and sudden stops create tilting moments that vary continuously during operation.

Eccentric loads generate overturning moments that cause the slewing bearing raceway to experience uneven contact pressure. Some rolling elements carry significantly higher loads than others, creating stress concentrations that accelerate fatigue and wear. A deviation of just 0.5mm in alignment can create contact pressures 300% higher than intended in specific raceway zones.

Research has established that under eccentric load conditions, the contact angle of rolling elements changes significantly, which can damage the raceway by chipping or rolling the edge of the bearing ring. This edge loading effect is a primary cause of premature slewing bearing failure in crane applications.

How Eccentric Loads Affect Slewing Bearing Contact Mechanics

The fundamental challenge of eccentric loads lies in their impact on load distribution across the rolling elements.

Uneven contact force distribution: Under symmetrical loading, the slewing bearing’s rolling elements share the load relatively evenly. Under eccentric loading, rolling elements on the side of the overturning moment carry disproportionately high loads, while elements on the opposite side may experience reduced contact or even separation from the raceway.

Contact angle variation: As the tilting moment increases, the contact angle of rolling elements changes. This alteration affects the slewing bearing’s ability to maintain proper load distribution and can cause the rolling elements to contact the raceway at the edge rather than the center. This edge contact creates stress concentrations that lead to spalling and premature failure.

Time-varying friction torque: Unlike static friction models, eccentric loading creates time-varying friction torque that incorporates viscous friction, sliding friction, and elastic hysteretic friction. The dynamic coupling relationships among contact load, vibration displacement, and friction torque create complex behavior that cannot be captured by simple static analysis.

Nonlinear Dynamic Behavior of Slewing Bearings Under Eccentric Loads

Recent research has advanced the understanding of slewing bearing dynamics under eccentric loading conditions. A comprehensive nonlinear dynamic model developed for single-row four-point contact ball slewing bearings in rotary cranes reveals several key phenomena .

Bearing-gear coupling effects: The interaction between gear meshing excitation and internal bearing contact creates complex dynamic responses. Unlike simplified linear models, the coupled analysis captures how external drive gear vibration interacts with internal bearing dynamics, creating load transfer patterns that affect service life.

Time-varying contact parameters: Under dynamic eccentric loads, contact parameters such as contact angle and contact semi-axis evolve over time. These time-varying parameters affect the slewing bearing’s stiffness and vibration characteristics, creating conditions that can lead to instability and accelerated wear .

Vibration response characteristics: Studies have demonstrated that under eccentric load conditions, the vibration amplitude of a slewing bearing can increase significantly. Time-domain analysis reveals defect size-dependent amplitude characteristics, with peak increases of up to 42.6% observed under eccentric loading . Spectral analysis reveals distinct modulation patterns that can be used for fault diagnosis.

Common Failure Modes Caused by Eccentric Loading

Raceway indentation and brinelling: Localized overloading from eccentric loads can cause permanent indentation of the raceway. Even slight overloads can dimple a bearing race, and a dimple that starts at 1/1000th of an inch will almost always get bigger. These indentations create stress concentrations that accelerate spalling.

Edge spalling and chipping: When rolling elements contact the edge of the raceway due to tilting moments, edge loading occurs. This causes spalling and chipping at the raceway edge, which can lead to catastrophic failure if not addressed.

Uneven wear patterns: Poor work distribution leads to uneven wear patterns, usually causing excessive play. For example, lifting with a boom and undercarriage in the same position every time—such as curbside digging with an excavator—can dimple the slewing bearing race near the uneven load.

Accelerated fatigue: The combination of higher contact stresses and complex dynamic behavior under eccentric loads accelerates rolling contact fatigue. Spalling begins as microscopic surface fatigue cracks that propagate and eventually cause pieces of the raceway material to detach.

Design Considerations for Eccentric Load Applications

Static safety factor selection: For applications with significant eccentric loading, higher static safety factors are required. Typical values range from 1.5–2.0 for normal operation to 2.5–4.0 for applications with frequent shock loads and eccentric conditions.

Raceway profile optimization: Modern slewing bearings use optimized raceway geometries—such as logarithmic profiles—to distribute stress more evenly under eccentric loads. This design approach can reduce peak Hertzian pressure by approximately 12% under tilted conditions.

Material and heat treatment: For applications with significant eccentric loading, higher-grade materials such as 42CrMo4 with proper heat treatment are essential. The raceway hardness of 55–62 HRC with hardened layer depth of 3mm–6mm provides the resistance to indentation and spalling required under uneven loading .

Rolling element optimization: Research indicates that reducing the number of rollers can improve dynamic characteristics of slewing bearings under excessive eccentric loading . This counterintuitive finding highlights the importance of application-specific design optimization.

How LDB Bearing Addresses Eccentric Load Challenges

LDB Bearing (Luoyang Longda Bearing Co., Ltd.) designs and manufactures slewing bearings for heavy machinery applications where eccentric loads are a primary design consideration. Products use verified 42CrMo forged alloy steel with induction-hardened raceways achieving 55–62 HRC and gear teeth hardened to 50–60 HRC.

LDB’s engineering approach:

  • Application-specific design: Load calculations based on actual operating conditions, including dynamic eccentric loads and tilting moments
  • Material selection: Verified 42CrMo and 50Mn forged alloy steel with full traceability for demanding eccentric load applications
  • Heat treatment: In-house induction hardening with documented hardness records and proper hardened layer depth
  • Precision manufacturing: CNC machining and gear cutting meeting international standards, with dimensional records retained for every bearing
  • Quality certification: ISO 9001-certified manufacturing with documented inspection reports

Serving 73 countries with over 500,000 units in service, LDB delivers the reliability that heavy machinery applications demand. Understanding how eccentric loads affect slewing bearing performance—contact mechanics, dynamic behavior, and failure modes—enables better selection, installation, and maintenance practices. LDB offers the technical expertise and quality assurance that equipment manufacturers and operators need for reliable, long-term operation.

Contact LDB Bearing today to discuss your heavy machinery slewing bearing requirements.

FAQs

1. What is an eccentric load on a slewing bearing?
An eccentric load occurs when the applied force is not centered on the bearing axis, creating a tilting moment that causes uneven load distribution across the rolling elements. This is common in crane and excavator applications where the boom extends outward from the center of rotation.

2. How does eccentric loading affect slewing bearing performance?
Eccentric loading creates uneven contact pressure across the raceway, causing some rolling elements to carry significantly higher loads than others. This accelerates wear, increases vibration, and can lead to edge spalling and premature failure.

3. What is the static safety factor for eccentric load applications?
For normal operation, static safety factors of 1.5–2.0 are typical. For applications with significant eccentric loads and shock conditions, factors of 2.5–4.0 are recommended to prevent raceway indentation and premature failure.

4. How does vibration change under eccentric loading?
Under eccentric loading, vibration amplitude can increase significantly—with studies showing peak increases of up to 42.6%. The vibration response shows distinct patterns that can be used for fault diagnosis and predictive maintenance.

5. Can a standard slewing bearing handle eccentric loads?
Standard slewing bearings have limited ability to handle eccentric loads. Heavy machinery with significant eccentric loading requires bearings designed with higher safety factors, optimized raceway geometry, and appropriate material and heat treatment specifications.

Advanced Materials and Heat Treatment for High-Performance Slewing Bearings

/in , /by

What Makes a Slewing Bearing Perform Under Extreme Conditions?

A slewing bearing operates at the intersection of heavy loads, slow rotation, and harsh environments. Unlike high-speed bearings that rely on hydrodynamic lubrication films, slewing bearings often work under oscillating motion and high static loads. Their performance and service life depend not on speed, but on material integrity and heat treatment precision.

The raceway of a slewing bearing is subjected to rolling contact fatigue—repeated stress cycles that can lead to surface-initiated cracks and spalling. Material quality directly determines how long the bearing withstands these forces before failure occurs.

Material Selection: The Foundation of Slewing Bearing Durability

The choice of steel grade is the first and most critical decision in slewing bearing manufacturing. For heavy-duty applications, forged alloy steels are the industry standard.

42CrMo (AISI 4140) is the most widely used material for slewing bearing rings. This medium-carbon low-alloy steel offers an excellent combination of strength, toughness, and hardenability. Its chemical composition—approximately 0.38-0.45% carbon, 0.9-1.2% chromium, and 0.15-0.25% molybdenum—provides the hardenability needed for deep induction hardening while maintaining core toughness.

50Mn is sometimes used for lighter-duty applications where cost is prioritized over extreme performance. However, it is typically less wear-resistant and more susceptible to fatigue compared to 42CrMo.

GCr15 (AISI 52100) is the standard material for rolling elements—steel balls and rollers. This bearing-grade chrome steel achieves HRC 60-66 through full quenching and tempering, providing the hardness and fatigue resistance needed for rolling contact surfaces.

Research has confirmed that 42CrMo4 steel, when properly heat-treated, delivers the fatigue strength and fracture toughness required for large-diameter slewing bearings used in wind turbines, excavators, and cranes. The orientation of the steel’s grain structure—developed through forging—also affects crack propagation resistance, making forging quality as important as chemical composition.

Induction Hardening: The Critical Process for Slewing Bearing Raceways

Heat treatment is where material potential becomes bearing performance. The most common and critical heat treatment for slewing bearings is induction hardening of the raceway surface.

Why induction hardening matters: The raceway must achieve a hard, wear-resistant surface while maintaining a tough, ductile core that can absorb shock loads without fracture. This combination is achieved through induction hardening, which heats the surface rapidly and quenches it before the heat penetrates to the core.

Hardness specifications: For 42CrMo raceways, the target surface hardness is 55–62 HRC. This hardness range provides the wear resistance needed to prevent raceway indentation and spalling under load.

Hardened layer depth: The effective hardened layer depth is equally critical. Industry standards specify a depth of 3mm to 6mm, depending on bearing size and load requirements. A leading manufacturer reports that achieving 3mm–5mm depth—rather than the 2mm commonly used in the industry—increases the rated static load of an excavator slewing bearing by 25%, effectively preventing raceway peeling and plastic deformation caused by long-term heavy-duty operation.

The “soft zone” challenge: Conventional induction hardening creates a seam or soft zone where the heating coils overlap. This soft zone is a potential failure point, as it lacks the full hardness of the rest of the raceway. Advanced techniques like seamless hardening use multiple inductors with oscillating movements and preheating to eliminate this seam, creating a continuously hardened raceway with up to 8mm depth.

Gear teeth hardening: When a slewing bearing includes integral gear teeth, these must also be induction-hardened to 50–60 HRC with a case depth of approximately 1.5mm to 3mm. This surface hardening resists wear and pitting from pinion engagement.

Tempering: Reducing Brittleness Without Sacrificing Hardness

After induction hardening, the hardened layer is hard but brittle. Without tempering, the raceway is susceptible to cracking during subsequent machining or under service loads.

The tempering process: The bearing ring is heated uniformly to a controlled temperature—typically around 160°C—to reduce residual stresses while maintaining surface hardness. Advanced tempering techniques, such as multi-stage gradient tempering at 180°C, 250°C, and 350°C, can eliminate quenching stress while promoting the formation of a composite microstructure with ultrafine grains and retained austenite.

Impact on performance: Proper tempering improves toughness and reduces the risk of brittle fracture without significantly reducing surface hardness. A patent for high-toughness slewing rings describes achieving a surface hardness of 58–62 HRC while maintaining core hardness of 38–45 HRC through controlled multi-stage tempering.

Superfinishing: The Final Step for Extended Slewing Bearing Life

After heat treatment, raceway surface finish affects lubrication and wear. Superfinishing is an advanced finishing process that refines the raceway surface to optimize tribology—the interaction of wear, friction, and lubrication.

Benefits of superfinishing: This process reduces inlet wear and increases the material content in the surface due to a plateau-like surface structure. Defined, intersecting precision machining grooves (cross grinding) ensure uniform lubricant distribution, reducing friction and extending calculated service life.

Impact on service life: For high-speed main bearings in wind turbines, superfinishing extends calculated service life beyond what hard turning and grinding alone achieve.

Material Quality Verification: Ensuring What You Specify Is What You Get

For critical slewing bearing applications, verifying material and heat treatment quality is essential.

Inspection requirements: Reputable manufacturers conduct 100% ultrasonic testing (UT) and magnetic particle testing (MT) to ensure no internal cracks, slag inclusions, or porosity exist. These tests, conducted according to industry standards, confirm structural integrity before the bearing leaves the factory.

Documentation: Buyers should request material test certificates, hardness test records, and dimensional inspection reports. Traceability from raw material through final delivery ensures quality accountability.

Rolling element quality: Balls and rollers, typically made from GCr15 (AISI 52100), should be through-hardened to HRC 60–66 for optimal fatigue life.

How LDB Bearing Delivers Advanced Materials and Heat Treatment

LDB Bearing (Luoyang Longda Bearing Co., Ltd.) applies advanced materials science and heat treatment to produce high-performance slewing bearings for demanding applications. The company uses verified 42CrMo and 50Mn forged alloy steel with documented heat treatment processes achieving raceway hardness of 55–62 HRC and hardened layer depth of 3mm–5mm.

LDB’s quality commitments:

  • Material integrity: Verified forged alloy steel from Tier-1 mills with full traceability from raw material through final delivery
  • In-house induction hardening: CNC medium-frequency quenching machines with documented hardness records and consistent hardening depth
  • Precision manufacturing: CNC machining and gear cutting meeting international standards, with dimensional records retained for every bearing
  • 100% inspection: Ultrasonic and magnetic particle testing for every bearing before shipment
  • Engineering support: Application engineering for load calculations, finite element analysis, and custom heat treatment specifications

Serving 73 countries with over 500,000 units in service, LDB delivers the material quality and heat treatment precision that heavy machinery applications demand. When you choose LDB, you gain a partner committed to ensuring that the slewing bearing you receive performs as specified—for as long as your application requires.

Contact LDB Bearing today to discuss your slewing bearing material and heat treatment requirements.

FAQs

1. What steel grade is best for slewing bearing rings?
42CrMo (AISI 4140) is the most widely used and recommended material for slewing bearing rings, offering excellent strength, toughness, and hardenability. 50Mn is sometimes used for lighter-duty applications where cost is prioritized.

2. What hardness should a slewing bearing raceway achieve?
Raceway hardness should reach 55–62 HRC through induction hardening. This provides the wear resistance needed while maintaining core toughness through proper tempering.

3. How deep should the hardened layer be on a slewing bearing raceway?
Industry standards specify a hardened layer depth of 3mm to 6mm for optimal performance. Achieving 3mm–5mm depth increases rated static load by approximately 25% compared to shallower hardening.

4. What is the “soft zone” in slewing bearing hardening?
The soft zone is a seam where induction heating coils overlap, creating an area of incomplete hardening. Advanced seamless hardening processes eliminate this zone to ensure uniform raceway hardness.

5. Why is tempering important after induction hardening?
Tempering reduces internal residual stresses that can cause cracking or brittle fracture during subsequent machining or service. It improves toughness while maintaining necessary surface hardness.
