Marine Crane Slewing Bearing: Key Aspects and Considerations

/in /by

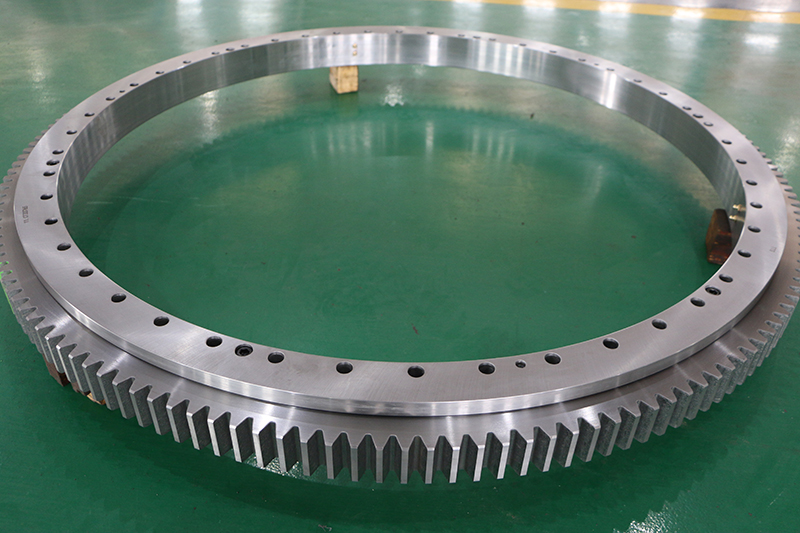

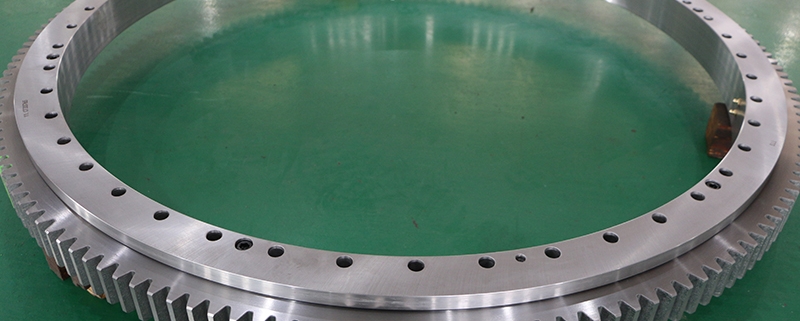

What is Marine Crane Slewing bearing？
The Marine Crane Slewing bearing is a crucial component in the operation of marine cranes, designed to provide smooth and controlled rotation while handling heavy loads in harsh marine environments. This specialized bearing, also known as a slewing ring, comprises an inner and outer ring with rolling elements (typically balls or rollers) in between, allowing the crane’s boom and other components to rotate relative to the base. Engineered to withstand high radial and axial forces, as well as extreme conditions including saltwater, corrosion, and varying temperatures, the Marine Crane Slewing bearing plays a vital role in ensuring efficient, precise, and reliable operations for various marine applications such as cargo handling, shipbuilding, and offshore drilling.

Features of Marine Crane Slewing bearing：
Marine Crane Slewing bearings have specific features designed to provide optimal performance, durability, and reliability in challenging marine environments. Some of these key features include:

  • High load capacity: Marine crane slewing bearings are engineered to handle high radial and axial forces generated by cranes moving substantial loads.
  • Corrosion resistance: Made from materials like stainless steel or treated with special coatings, these bearings are designed to withstand corrosive saltwater and moisture inherent in marine environments.
  • Low-friction rotation: The well-designed rolling elements (balls or rollers) ensure smooth, low-friction rotation, enabling precise and controlled movements during crane operation.
  • Effective sealing system: Marine crane slewing bearings usually have an efficient sealing system to protect the bearing from contamination by water, sand, dust, and other sources of debris.
  • Robust design: These slewing bearings are built to withstand extreme environmental conditions, such as varying temperatures and humidity, ensuring consistent performance and a long service life.
  • Compactness and space efficiency: Marine crane slewing bearings offer a compact design suitable for limited space on vessels or offshore structures.
  • Ease of maintenance: They are often designed to simplify maintenance processes, such as lubrication and inspection, ensuring their long-term performance and reliability.
  • Customization: Marine crane slewing bearings can often be tailored to accommodate specific application requirements, ensuring an optimal fit for a diverse range of marine environments and conditions.

These features combine to ensure that Marine Crane Slewing bearings deliver consistent performance and reliability under challenging circumstances, making them an indispensable component in the operation of marine cranes.

Application of Marine Crane Slewing bearing：

Marine Crane Slewing bearings are vital components in a wide range of marine applications, as they provide the necessary support and rotational capabilities for various kinds of marine cranes. Some common applications of Marine Crane Slewing bearings include:

  • Cargo handling: Slewing bearings are essential for shipboard cargo cranes, which are responsible for loading and unloading cargo from ships efficiently and safely, ensuring smooth port operation.
  • Shipbuilding: Marine crane slewing bearings are used in shipyard cranes, enabling precise and controlled rotation while installing heavy components during the construction and repair of ships.
  • Offshore drilling: Slewing bearings play a crucial role in offshore crane operations, used in the oil and gas industry for lifting and transferring heavy equipment and materials on and off rigs or platforms.
  • Fishing vessels: Marine crane slewing bearings are used in fishing cranes, allowing the hoisting, lowering, and rotating of fishing equipment, such as heavy nets or trawls, as well as assisting with onboard processing tasks.
  • Research and exploration operations: Slewing bearings are part of marine cranes equipped on research vessels, offering stable rotational capabilities for deploying, retrieving, and maneuvering research equipment and submersibles in various marine environments.
  • Naval operations: Marine crane slewing bearings are also used in cranes on naval vessels, providing efficient rotation for tasks such as moving personnel, provisions, ammunition, and equipment during at-sea replenishment or resupply operations.
  • Renewable energy: Slewing bearings are crucial for the movement and positioning of heavy components during the installation, operation, and maintenance of marine renewable energy systems such as offshore wind turbines and tidal power devices.

These applications highlight the importance and versatility of Marine Crane Slewing bearings, as they ensure smooth, precise, and reliable operation while handling heavy loads under the challenging conditions typically encountered in marine environments.

Where is the Marine Crane Slewing bearing installed?

The Marine Crane Slewing bearing is installed at the base of the marine crane, connecting the fixed lower structure (usually mounted on a ship, offshore platform, or harbor) with the rotating upper structure, which comprises the machinery, crane boom, and operator’s cabin. It serves as a large rotational interface that enables the crane to perform 360-degree rotation while supporting the boom and lifting loads. The slewing bearing is designed to withstand the high radial and axial forces exerted during crane operation while also resisting the harsh marine environment, such as saltwater exposure, corrosion, and extreme temperatures. In short, the Marine Crane Slewing bearing plays an essential role in ensuring the efficient and reliable functioning of the marine crane.

A ship crane is primarily composed of a rotating tower, boom, fixed base post welded to the deck, lifting, tilting, and swinging mechanisms, hydraulic power and piping systems, and electrical control systems. The marine crane features a turntable bearing mounted at the base of the crane tower. The inner ring’s lower end is bolted to the fixed base post that is welded onto the ship’s deck, whereas the outer ring’s upper end is connected to the crane tower using bolts.

During a ship crane’s operation, the swing pinion is actuated by the swing mechanism, engaging with the ring inside the turntable bearing. This engagement results in the outer ring’s rotation, thereby enabling the ship crane to swing smoothly and effectively carry out its regular operations.

The force characteristics and common bearing structure about Marine Crane Slewing bearing：
Marine Crane Slewing bearings are designed to accommodate a combination of forces and provide a stable rotational support system for marine cranes. Below, we discuss the force characteristics and common bearing structures associated with Marine Crane Slewing bearings.

Force Characteristics

  1. Radial force: Radial force acts perpendicular to the rotation axis of the slewing bearing. Marine Crane Slewing bearings are designed to withstand and support heavy radial loads resulting from equipment weight and the load being lifted.
  2. Axial force: Axial force acts parallel to the rotation axis of the slewing bearing. These bearings are engineered to handle axial forces like the overturning moment caused by crane operations or severe environmental impacts such as strong winds.
  3. Moment force: Moment force, or torque, is generated during lifting or maneuvering operations. Marine Crane Slewing bearings are constructed to resist sizable moment loads, ensuring smooth and controlled rotation and preventing excessive tilting of the crane components.

Common Bearing Structures

  1. Single-row ball slewing bearing: This design features a row of steel balls arranged between the inner and outer rings. The single-row structure provides a compact and cost-effective solution but with limited load capacity compared to other structures.
  2. Double-row ball slewing bearing: This configuration has two rows of steel balls, offering increased load-carrying capacity and improved rigidity compared to single-row designs. Double-row ball slewing bearings can handle larger radial and axial forces, making them ideal for heavy-duty marine crane applications.
  3. Single-row cross roller slewing bearing: This design consists of a single row of cylindrical rollers arranged perpendicular to the raceway, providing higher load capacity and greater stiffness than single-row ball bearings. Cross roller slewing bearings allow smooth rotation while handling increased axial and moment loads.
  4. Three-row roller slewing bearing: The most robust and heavy-duty bearing configuration, this structure comprises three separate rows of cylindrical rollers. Each row is designed to handle either radial or axial loads, providing exceptional load-carrying capacity and rotational stability for heavy-duty marine cranes.

The right choice of slewing bearing structure depends on the force characteristics, load capacity, and specific requirements of the marine crane application. Ensuring the optimal design and configuration of the Marine Crane Slewing bearing is crucial for maintaining efficient, reliable, and safe operations in demanding marine environments.

The materials of Marine Crane Slewing bearing

Marine Crane Slewing bearings must be made from materials that can withstand the harsh marine environment while providing reliable support and smooth rotation. The material selection plays a crucial role in determining the durability, load capacity, and corrosion resistance of the slewing bearings. Below are some of the common materials used for Marine Crane Slewing bearings:

  1. Carbon steel: Carbon steel is an economical and widely used material for slewing bearing production. This material provides reasonable tensile strength, impact resistance, and stiffness, making it suitable for moderate marine crane applications.
  2. Alloy steel: Alloy steel, which combines carbon steel with other elements, offers improved mechanical properties and corrosion resistance. Materials such as 42CrMo or 50Mn are commonly used for slewing bearing production due to their enhanced strength, toughness, and fatigue resistance.
  3. Stainless steel: Stainless steel is an ideal material for marine applications, as it exhibits high corrosion resistance, especially in saltwater environments. Marine Crane Slewing bearings made from stainless steel, like AISI 300 series, provide a superior level of durability and reliability when exposed to harsh marine conditions.
  4. Surface treatment and coatings: Surface treatments and coatings can further improve the performance of slewing bearings. Techniques such as zinc or nickel plating, phosphating, or heat treatment can enhance corrosion resistance and surface hardness.
  5. Sealing materials: The materials chosen for sealing systems should provide effective protection from moisture, saltwater, dust, and other contaminants prevalent in marine environments. Seals typically consist of various elastomers, such as NBR, FKM, or HNBR, which offer optimal resilience, flexibility, and resistance against chemicals and UV radiation.

The choice of material for Marine Crane Slewing bearings depends on factors like budget, environmental conditions, required strength, and load capacity. By selecting quality materials and incorporating appropriate surface treatments and sealing systems, manufacturers can produce durable and reliable slewing bearings that effectively maintain the efficiency and safety of marine crane operations.

Maintenance and Lubrication for Marine Crane Slewing bearing：

Proper maintenance and lubrication are essential for ensuring the longevity and optimal performance of Marine Crane Slewing bearings. Regular inspections and servicing can prevent premature wear and detect potential issues early. Below are some key maintenance and lubrication tips for Marine Crane Slewing bearings:

  1. Regular inspections: Perform routine visual inspections to check for signs of wear, corrosion, or damage to the slewing bearing, seals, and other components. Monitor for abnormal noise or vibrations during operation, as these might indicate potential problems.
  2. Cleaning: Clean the slewing bearing regularly to remove dirt, dust, salt, and other contaminants. Rinse with fresh water if exposed to saltwater, and use a soft brush to remove deposits, if necessary.
  3. Seal inspection: Examine seals for signs of wear, cracking, or damage. Replace damaged seals promptly to prevent ingress of contaminants and ensure adequate protection against harsh marine environments.
  4. Lubrication: Proper lubrication is crucial for reducing friction, minimizing wear, and extending the slewing bearing’s service life. Use a suitable grease or oil recommended by the manufacturer, and consider the specific environmental conditions and load capacities.
  5. Lubrication intervals: Re-lubricate the slewing bearing at regular intervals based on the manufacturer’s guidelines, bearing’s usage, and operating conditions. High workload or harsh environments may require more frequent lubrication.
  6. Bearing adjustment: Check the bearing’s preload and adjust it if necessary, following the manufacturer’s recommendations. Proper adjustment can help prevent excessive wear, ensure smooth rotation, and maintain optimal performance.
  7. Replacement and repairs: Monitor the bearing’s condition and replace it when signs of excessive wear or damage are detected. Early detection and prompt repairs or replacement can prevent catastrophic failures and costly downtime.
  8. Recordkeeping: Keep a detailed maintenance log, including inspection dates, servicing activities, and any repairs or replacements. Regular recordkeeping can help predict and plan future maintenance needs.

By following these maintenance and lubrication guidelines for Marine Crane Slewing bearings, the performance, reliability, and service life of the bearings can be significantly improved, ensuring the smooth and efficient operation of marine cranes in demanding environments.

The sealing of the Marine Crane Slewing bearing：

The sealing system is an essential part of Marine Crane Slewing bearings that plays a critical role in their reliability and operational efficiency. Effective seals protect the bearings from a wide range of contaminants, such as saltwater, moisture, dust, and debris, which are commonly encountered in marine environments. Proper sealing is necessary to maintain the bearings’ performance, reduce wear, and prolong their service life.

There are several types of sealing systems used in Marine Crane Slewing bearings:

  1. Labyrinth seals: Labyrinth seals feature a non-contact design with multiple intricate tortuous paths. This design effectively prevents the ingress of contaminants while allowing smooth rotation. Labyrinth seals can be either integral to the bearing or provided as a separate component. While less effective against liquid contaminants, labyrinth seals typically exhibit low friction and good dust exclusion properties.
  2. Rubber seals: Rubber seals, generally made of elastomers like NBR, FKM, or HNBR, provide a flexible lip that makes contact with the bearing’s raceway. They offer excellent resistance to chemicals, UV radiation, and abrasion and are effective in preventing the ingress of both liquid and solid contaminants. Rubber seals are generally more effective against liquid contaminants than labyrinth seals but may generate higher friction.
  3. Brush seals: Brush seals consist of numerous closely-spaced, flexible metal or plastic bristles installed around the circumference of the bearing. These seals offer an adaptable barrier against dust and debris while still allowing smooth rotation.
  4. Metal seals: Metal seals are designed to provide a durable and resilient barrier against contaminants. They are typically made of corrosion-resistant materials like stainless steel or aluminum, and feature a metal lip that makes contact with the bearing’s raceway. Metal seals provide a sturdy option to withstand harsh marine environments.

The choice of sealing system depends on the marine crane’s specific operating conditions, requirements, and environmental factors. A combination of different seal types may be used to optimize protection, efficiency, and longevity. Proper installation, regular inspection, and timely replacement of worn or damaged seals are vital to maintaining the performance and service life of Marine Crane Slewing bearings.


Marine Crane Slewing bearing Manufacturer：

Luoyang Longda Bearing Co., Ltd. (LDB-Bearing) is a reputable manufacturer with more than 30 years of experience in the design and production of slewing bearings. Their seasoned engineering team can customize specific slewing bearings to cater to clients’ varying needs in terms of project specifications, operational conditions, and unique requirements, including Marine Crane Slewing bearings.

LDB-Bearing is dedicated to delivering high-quality, reliable, and optimized slewing bearings that meet the performance criteria for marine cranes operating in harsh environments. Their expertise and focus on tailored solutions ensure that clients receive bearings that fit their application needs and perform well under demanding circumstances, contributing to the safe and efficient operation of marine cranes.
